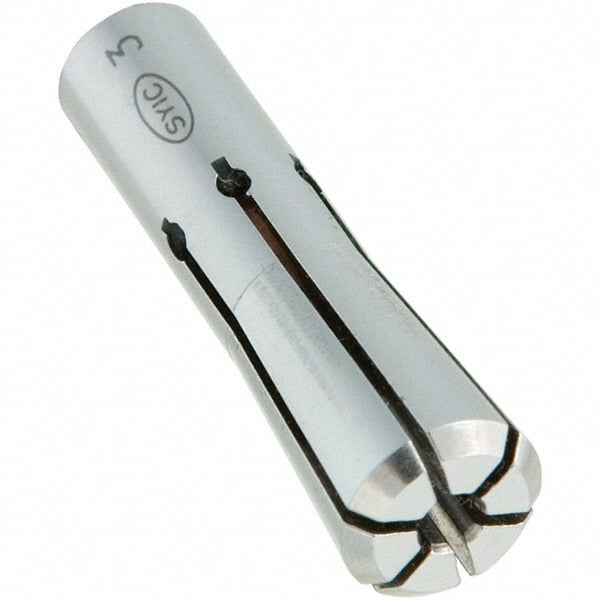

Techniks 18851-9/64 Single Angle Collet Slimfit 6 9/64

Product Description

The TECHNIKS 18851-9/64 is a single angle collet in the SlimFIT 6 series, designed for precision tool holding in CNC machining and milling applications. It accepts a 9/64 inch tool shank and features a maximum body diameter of 0.394 inches with an overall length of 1.417 inches. The collet is manufactured to a total indicator runout (TIR) of 0.0001 inches, making it suitable for close-tolerance operations where concentricity is critical. Machinists and tool room technicians install this collet into compatible SlimFIT 6 chuck bodies to secure cutting tools during high-speed or precision work.

This collet is used in shop environments where slim-profile tool holding is required, particularly where clearance is limited or where reach into deep cavities demands a reduced-diameter chuck body. The SlimFIT 6 series is well suited for precision milling, drilling, and reaming operations in both production and job shop settings. The 9/64 inch bore size accommodates standard fractional shank tooling commonly used in metal cutting and general machining work.

Key Features

• 0.0001 inch TIR for high-precision, low-runout tool holding
• 9/64 inch bore size fits standard fractional shank cutting tools
• 0.394 inch maximum body diameter for slim-profile fitment
• 1.417 inch overall length suits compact tool assemblies
• Part of the SlimFIT 6 collet series for consistent system compatibility

Compatibility

Designed for use with TECHNIKS SlimFIT 6 series chuck bodies. Verify chuck series and bore size before installation. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation is performed by qualified machinists or tool room technicians. Before changing collets, power down the spindle completely and confirm the machine is in a safe, locked-out state per your facility lockout/tagout procedure. Inspect the collet bore and chuck taper for chips, damage, or wear before seating the collet. Do not exceed the tool shank diameter rating for this collet bore size.
