Product Description

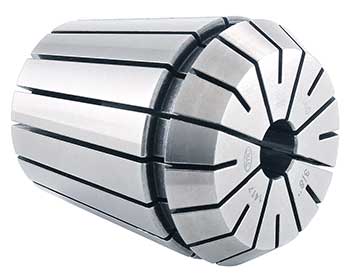

The Techniks ER40 7/32 Collet, model 04240-7/32, is designed for precision holding. This collet is suitable for a clamping range of 0.1794 to 0.2188 inches, allowing for versatility in applications. The design ensures a high accuracy with a TIR of 0.0002 inches, making it ideal for tasks that require tight tolerances.
- Clamping Range: 0.1794 to 0.2188 inches
- Precision TIR: 0.0002 inches
- Compatible with ER40 series collet chucks
Product Highlights
The Techniks ER40 collet series provides reliable and precise clamping. The collet is made from high carbon steel and is heat treated for durability and extended life.
Product Information
Standard Information
-
Brand: Techniks
-
Collet Series: ER40
Technical Specifications
-
Size: 7/32 inches (5.558 mm)
-
Clamping Range: 0.1794 - 0.2188 inches (4.56 - 5.56 mm)
-
Accuracy TIR: 0.0002 inches
-
Body Diameter: 1.61 inches
-
Head Diameter: 1.61 inches
-
Overall Length: 1.81 inches
-
Clamping Hole Length: 1.81 inches
-
Suitable For Use With: DR, RD, ESX, AR and BR series collet chuck
