Techniks 04240-15/16 Technik ER 40 15/16 Collet Replacement MPN

Product Description

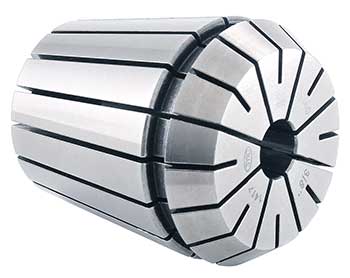

The Techniks 04240-15/16 is an ER 40 collet designed for precision toolholding. This collet is compatible with various collet chucks. It features a clamping range of 0.8981 to 0.9375 inches. This product is ideal for secure and accurate tool holding in machining applications.

• Collet Series: ER40
• Size: 15/16 inches
• Accuracy TIR: 0.0002 inches

Product Highlights

The Techniks ER 40 15/16 collet is made for precision applications in toolholding. It provides a reliable grip for various tooling needs and ensures minimal runout for improved machining results.

Product Information

Standard Information

• Brand: Techniks
• Part Number: 04240-15/16

Technical Specifications

• Clamping Range: 0.8981 - 0.9375 inches
• Accuracy TIR: 0.0002 inches
• Collet Type: Precision Single Angle
• Overall Length: 1.81 inches
• Body Diameter: 1.61 inches
• Head Diameter: 1.61 inches
• Suitable for Use With: DR, RD, ESX, AR and BR Series Collet Chuck
