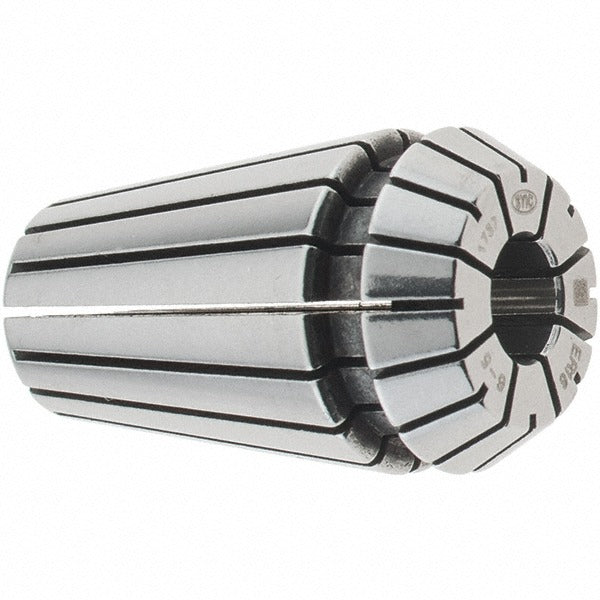

Techniks 04216-06 ER16 Collet 6 Mm Through Coolant

Product Description

The TECHNIKS 04216-06 is an ER16 series collet sized for 6 mm tooling, used to secure cutting tools in ER16-compatible collet chucks on CNC machining centers, manual mills, and other rotating spindle equipment. It features through-coolant capability, allowing coolant to pass directly through the collet body to the cutting zone for improved chip evacuation and tool life. The collet holds a Total Indicator Runout (TIR) of 0.0050 mm, providing the concentricity needed for precision milling, drilling, reaming, and tapping operations. Machinists and CNC operators rely on ER-style collets for fast, repeatable tool changes across a wide range of spindle setups.

This collet is suited for use in production and job-shop environments where ER16 collet chucks are the standard workholding method. Typical applications include light to medium milling, precision drilling, and tapping on benchtop or full-size CNC machining centers. The 6 mm bore size accommodates standard 6 mm shank tooling. Through-coolant support makes it appropriate for high-speed operations where flood coolant alone does not reach the cutting edge effectively.

Key Features

• ER16 collet series - fits all standard ER16-compatible collet chucks
• 6 mm collet bore for 6 mm shank cutting tools
• Through-coolant design channels coolant directly to the cutting zone
• 0.0050 mm TIR for precision concentricity in high-accuracy operations
• Compact ER16 form factor suited to light-duty and precision spindle work

Compatibility

Designed as an OEM-style replacement and standard-fitment collet for use in any ER16-compatible collet chuck or toolholder accepting 6 mm bore ER16 collets.

Installation Notes

Installation is performed by a machinist or CNC operator. Before inserting or removing collets, de-energize the spindle and confirm the machine is in a safe, locked-out state per shop lockout/tagout procedures. Seat the collet fully into the collet nut before threading the nut onto the chuck body, and torque the nut to the chuck manufacturer's specification using an appropriate ER collet wrench. Inspect the collet bore and seating surfaces for chips or contamination before each use to maintain TIR performance.
