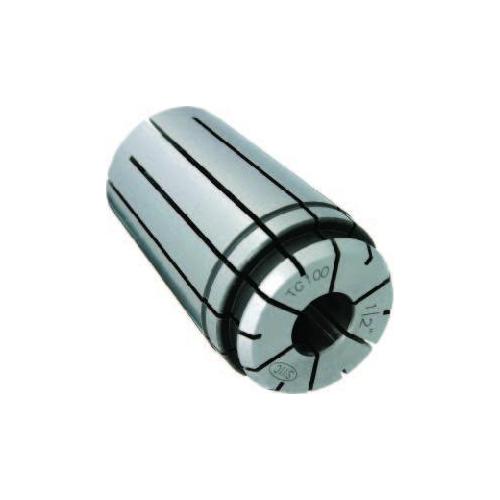

Techniks 04010-15/16 TG 100 Collet

Product Description

The Techniks 04010-15/16 TG 100 collet is designed for precision and efficiency in toolholding applications. This collet has a size of fifteen-sixteenths inches and is part of the TG100 series. It features a clamping range from zero point nine-two-two zero to zero point nine-three eight zero inches. The accuracy of this collet is rated at a total indicator runout of zero point zero zero zero four inches.

• Size: 15/16 inches
• Clamping Range: 0.9220 - 0.9380 inches
• Accuracy TIR: 0.0004 inches

Product Highlights

This collet is suitable for use with TG collet chucks and is ideal for holding tools with precision.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: TG100

Technical Specifications

• Size: 15/16 inches
• Clamping Range: 0.9220 - 0.9380 inches
• Accuracy TIR: 0.0004 inches
• Body Diameter: 2.001 inches
• Head Diameter: 2.001 inches
• Overall Length: 3 inches
• Clamping Hole Length: 2-3/8 inches
• Suitable For Use With: TG Collet Chuck
