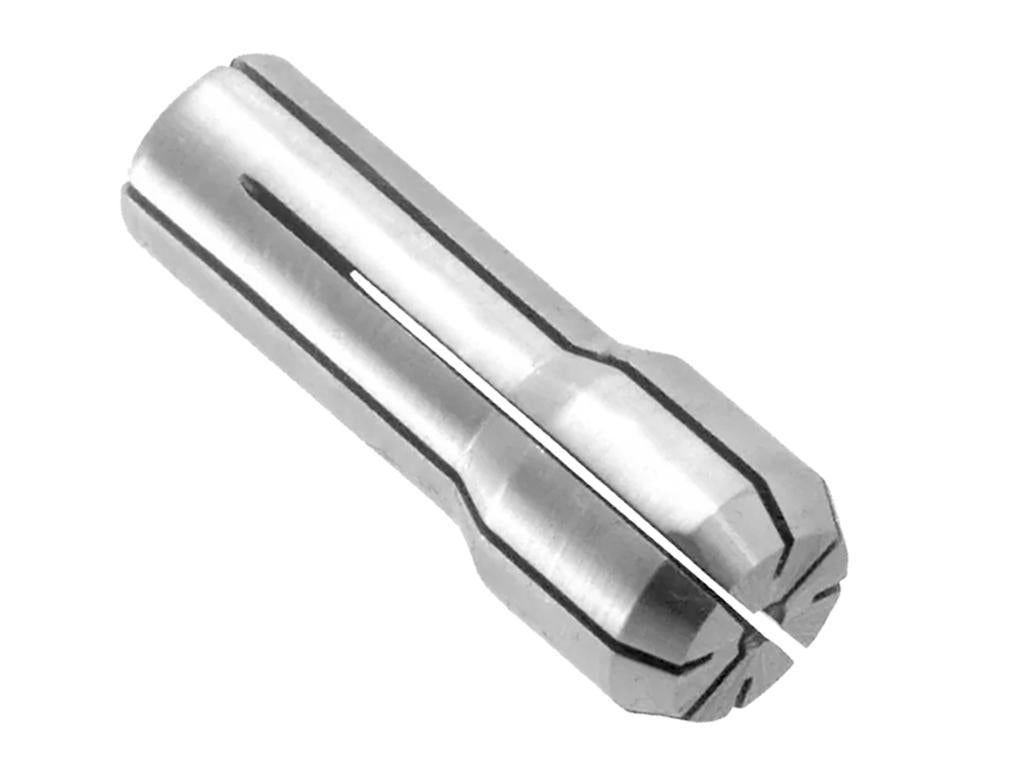

Techniks 01630-7/64 TECH DA300 7/64 COLLET

Product Description

The Techniks 01630-7/64 is a precision collet designed specifically for toolholding applications. This DA300 series collet is sized at 7/64 inches and caters to a clamping range of zero point zero nine three eight to zero point one zero nine four inches. The collet is suitable for use with double angle collet chucks, making it an essential tool for various machining tasks.

• Precision ground for accurate holding
• Capacity range from zero point zero nine three eight to zero point one zero nine four inches
• Made of high carbon steel for durability

Product Highlights

This collet is ideal for demanding machining environments where precision and reliability are critical.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: DA300

Technical Specifications

• Size: 7/64 inches (2.780 mm)
• Clamping Range: 0.0938 to 0.1094 inches (2.383 to 2.779 mm)
• Head Diameter: 3/8 inches
• Overall Length: 1 inch
• Suitable For Use With: Double Angle Collet Chuck
