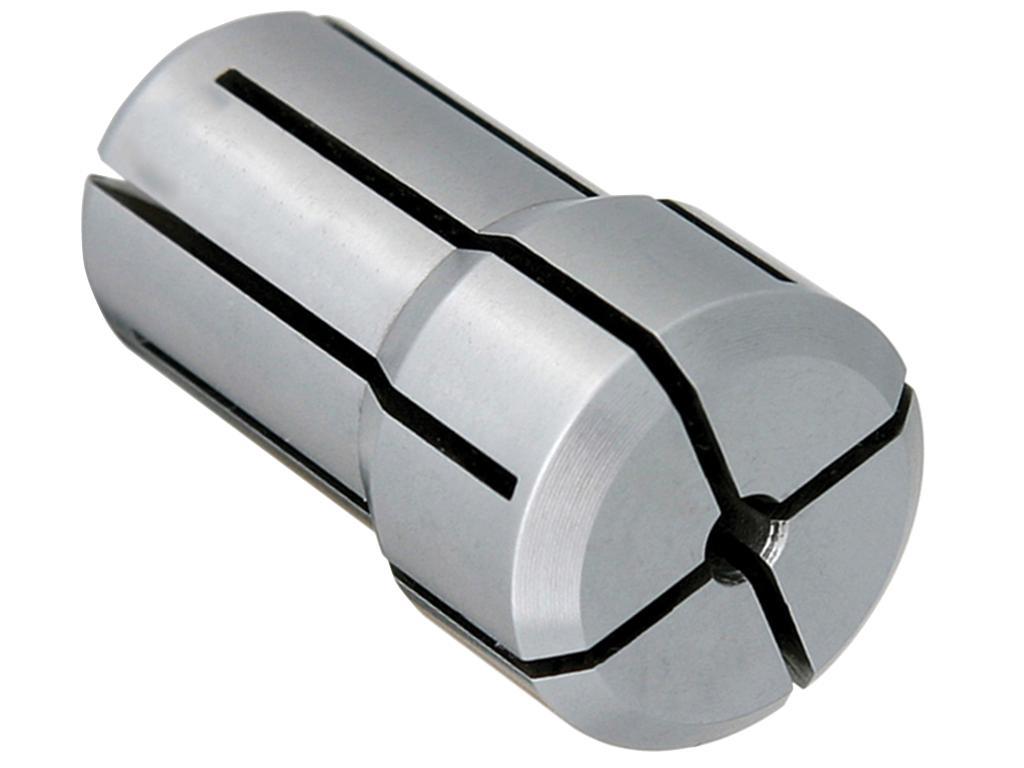

Techniks 01610-3/32 DA-100 3/32 Collet

Product Description

The Techniks 01610-3/32 is a DA-100 3/32 collet designed for precision applications. This collet features a clamping range from zero point zero seven eight one to zero point zero nine three eight inches. It is suitable for use with double angle collet chucks. The collet series is DNA100, ensuring compatibility with numerous tools and setups in mechanical and industrial settings.

• Clamping range of 0.0781 to 0.0938 inches
• DA100 size with a head diameter of 0.769 inches
• Manufactured from high carbon steel for durability

Product Highlights

Precision accuracy is a hallmark of the Techniks 01610-3/32 collet, making it ideal for demanding machining tasks.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: DNA100

Technical Specifications

• Size: 3/32 inches (2.383 mm)
• Clamping Range: 0.0781 - 0.0938 inches (1.984 - 2.381 mm)
• Overall Length: 1.438 inches
• Head Diameter: 0.769 inches
• Suitable For Use With: Double Angle Collet Chuck
