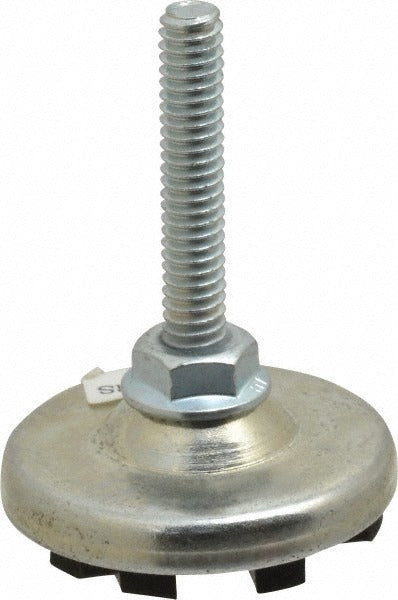

Tech Products Q-75 Studded Pivotal Leveling Mount 1/4-20

Product Description

The TECH PRODUCTS Q-75 is a studded pivotal leveling mount designed to provide stable, adjustable support for equipment and machinery. It features a 1/4-20 threaded steel stud and a rubber base pad that pivots to compensate for uneven mounting surfaces. The mount handles up to 75 pounds of load capacity and is suited for leveling light to medium industrial equipment, HVAC units, and mechanical assemblies. At 2-1/16 inches in total length with a 1-1/2 inch base diameter, it fits into compact mounting configurations where precision leveling is required. Installers in HVAC, mechanical, and general trade work use this type of mount to eliminate vibration transfer and correct for floor irregularities.

This leveling mount is used in residential and light commercial applications where equipment must be stabilized on hard floors or structural surfaces. Typical installations include small HVAC equipment bases, compressor mounting pads, pump supports, and general mechanical equipment leveling. The rubber pad absorbs vibration and protects flooring surfaces. The pivoting action of the base allows the stud to remain plumb even when the mounting surface is not perfectly level, which simplifies alignment during installation.

Key Features

• 75 pound load capacity per mount for light to medium equipment support
• 1/4-20 threaded steel stud for secure fastening into tapped holes or with a matching nut
• Rubber base pad pivots to adjust for uneven mounting surfaces
• 1-1/2 inch base diameter provides a stable footprint in a compact form
• 1.25 inch thread length allows adequate engagement depth in most applications
• Steel stud construction for durability in mechanical service environments

Compatibility

Designed as a standard OEM-style leveling mount for equipment requiring 1/4-20 threaded mounting points and up to 75 pounds of supported load per mount location.

Installation Notes

Installation is typically performed by HVAC technicians, pipefitters, or mechanical contractors during equipment setting. Thread the stud into a tapped hole or secure with a jam nut, then adjust height before final tightening to achieve level. Ensure the mounting surface can accept the base diameter and that the combined load across all mounts does not exceed the total rated capacity. Power down and de-energize any equipment before adjusting or repositioning leveling mounts beneath live machinery.
