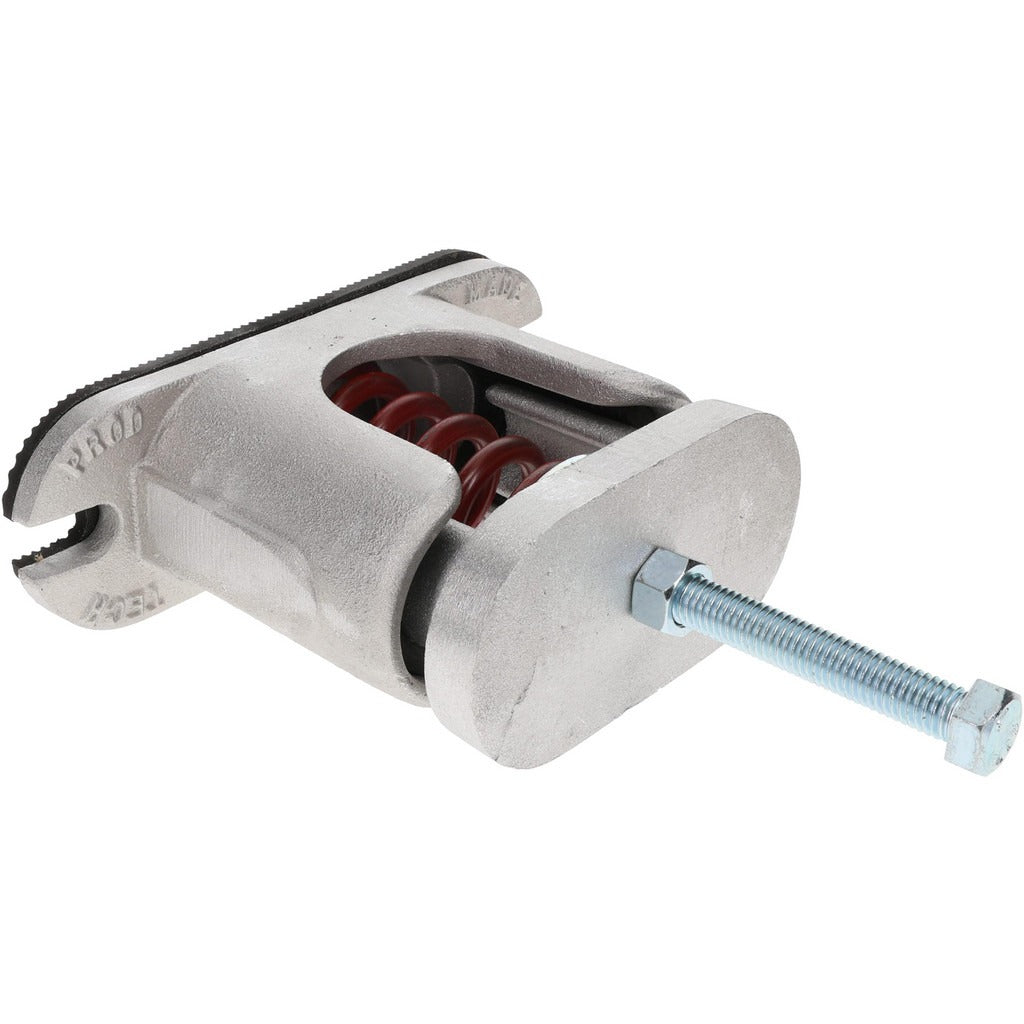

Tech Products 52844 Housed Spring Leveling Mount 225 Lb

Product Description

The TECH PRODUCTS 52844 is a housed spring leveling mount rated for 225 pounds of load capacity. It is designed to isolate vibration and provide adjustable leveling support for mechanical equipment such as HVAC units, compressors, pumps, and fans. The mount features a 1/2-13 bolt thread size and an overall width of 2.625 inches, making it suitable for compact equipment bases. With a maximum deflection of 1.26 inches, it absorbs dynamic loading effectively in both commercial and industrial installations. HVAC technicians and mechanical contractors install this type of mount during equipment commissioning or replacement.

This leveling mount is used in applications where spring isolation and height adjustment are needed simultaneously. Typical installations include rooftop HVAC equipment, indoor air handlers, pumps, and other rotating machinery that generates vibration. The 9/16-inch mounting hole diameter accommodates standard hardware, and the 3.5-inch thread length allows for elevation adjustment at the base of the unit. It suits both new installations and retrofits where an existing mount has failed or requires an upgrade for improved vibration control.

Key Features

• 225-pound load capacity supports a wide range of light to mid-weight mechanical equipment
• 1.26-inch maximum deflection for effective spring-based vibration isolation
• 1/2-13 bolt thread size for compatibility with standard mounting hardware
• 3.5-inch thread length provides generous height adjustment range
• 9/16-inch mounting hole diameter for straightforward bolted installation
• Compact 2.625-inch overall width fits tight equipment base configurations

Compatibility

Designed as an OEM-style replacement or new-installation spring leveling mount for mechanical equipment requiring vibration isolation and adjustable leveling support, including HVAC units, pumps, compressors, and fans with base mounting provisions.

Installation Notes

Installation is typically performed by HVAC technicians or millwrights during equipment setting or commissioning. De-energize and lock out all equipment before working on or around the unit base. Use appropriately rated hardware matched to the 1/2-13 thread specification, and verify that the combined mount load rating is not exceeded by the equipment weight. Consult local mechanical codes and equipment manufacturer guidelines for proper isolation mount placement and quantity.
