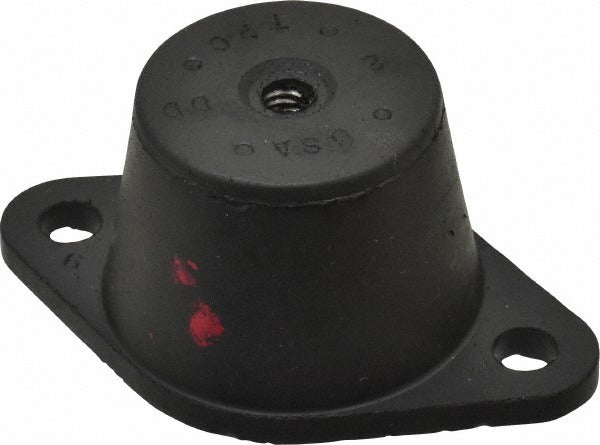

Tech Products 52533 Double Deflection Leveling Mount

Product Description

The TECH PRODUCTS 52533 is a double deflection leveling mount designed to isolate vibration and provide adjustable leveling support for mechanical equipment. It features a 3/8-16 threaded stud and a load capacity of 240 pounds, making it suitable for compressors, air handlers, pumps, and similar HVAC or industrial equipment. The base measures 1.75 inches in diameter with an 11/32-inch mounting hole. Overall width is 2.375 inches and overall length is 3.875 inches. This mount is installed by HVAC technicians, millwrights, and mechanical contractors where equipment leveling and vibration dampening are required.

This leveling mount is commonly used in residential and light commercial HVAC applications, including installations under condensing units, fan coil assemblies, and small pumps. The double deflection design provides vibration isolation in multiple planes, reducing noise transmission to the structure. It suits equipment pads, curbs, and equipment room floors where threaded stud mounting is the standard method of attachment.

Key Features

• 240 lb load capacity per mount for reliable support of medium-duty mechanical equipment
• 3/8-16 threaded stud for compatibility with standard threaded mounting configurations
• Double deflection design provides multi-plane vibration isolation
• 1.75-inch base diameter with 11/32-inch mounting hole for secure anchoring
• Compact footprint at 2.375 inches wide and 3.875 inches in overall length
• Lightweight at 0.5 pounds per unit for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for mechanical equipment requiring 3/8-16 threaded stud mounting and a load rating up to 240 lb per mount.

Installation Notes

Installation is typically performed by licensed HVAC technicians or mechanical contractors. De-energize and secure the equipment before positioning or adjusting mounts. Use appropriate wrenches to thread the stud into the equipment base and tighten the locking hardware to eliminate movement without over-compressing the isolator. Verify level across all mount points after installation and confirm the load per mount does not exceed the 240 lb rating.
