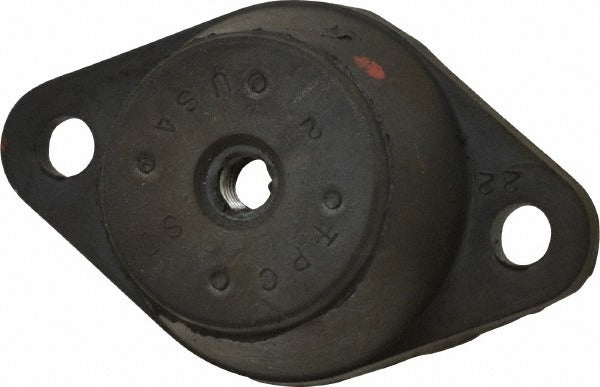

Tech Products 52523 Leveling Mount 3/8-16 240 Lb

Product Description

The TECH PRODUCTS 52523 is a standard deflection leveling mount designed to isolate vibration and provide stable, adjustable leveling support for mechanical equipment. Built with a steel stud and neoprene pad, it absorbs minor deflection up to 0.25 inches while distributing load across a 1.75-inch base diameter. The 3/8-16 threaded stud allows for straightforward height and leveling adjustment during installation. Rated at 240 pounds load capacity, this mount is suited for equipment pads, compressors, fan coil units, and similar HVAC or mechanical components requiring anti-vibration isolation.

This leveling mount is used in commercial and residential mechanical installations where equipment must be isolated from structural surfaces to reduce noise and vibration transmission. Common applications include rooftop HVAC units, condensing units, air handlers, pumps, and small compressors. It is installed by HVAC technicians, millwrights, and mechanical contractors as part of equipment commissioning or replacement service. The neoprene pad provides a resilient contact surface between the steel base and the mounting substrate.

Key Features

• 3/8-16 threaded steel stud for secure, adjustable leveling
• 240 lb load capacity per mount
• Neoprene pad for vibration and noise isolation
• Maximum deflection of 0.25 inches under load
• 1.75-inch base diameter with 0.34375-inch mounting hole diameter
• Overall assembled length of 3.875 inches

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for mechanical and HVAC equipment requiring 3/8-16 threaded anti-vibration isolation supports.

Installation Notes

Installation is performed by qualified HVAC technicians or mechanical contractors. De-energize and lock out all electrical power to the equipment before repositioning or shimming. Ensure the mounting surface can support the combined rated load across all mounts used. Verify stud engagement depth and thread integrity before applying load; do not overtighten the stud into soft or damaged mounting pads.
