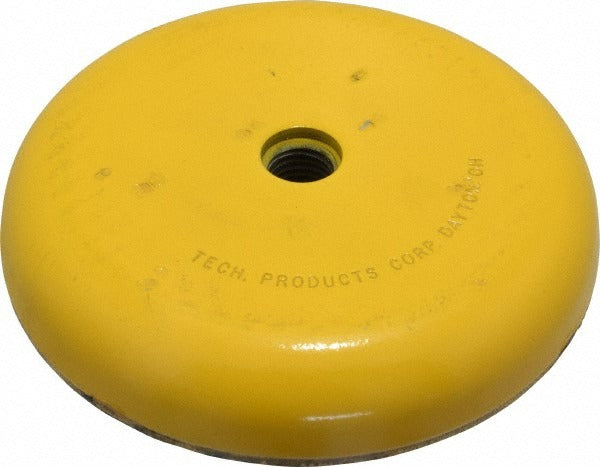

Tech Products 52226 Studded Leveling Mount 3/4-10 Thread

Product Description

The TECH PRODUCTS 52226 is a heavy-duty studded leveling mount designed to support and level industrial equipment, HVAC units, compressors, pumps, and similar machinery. It features a 3/4-10 threaded steel stud and a round neoprene pad base measuring 6.25 inches in diameter. The mount handles load capacities up to 4,500 pounds, making it suited for substantial mechanical equipment. The neoprene pad provides vibration damping and protects the mounting surface. The yellow-coated steel construction resists corrosion in typical mechanical room and outdoor pad environments. Installation requires no special tools beyond a standard wrench matched to the 3/4-inch hex size.

This leveling mount is used wherever equipment must be precisely leveled on a hard surface. Typical applications include rooftop HVAC equipment, ground-level condensing units, chillers, air compressors, pumps, and commercial or industrial machinery bases. The studded design threads directly into a tapped hole in the equipment frame or base rail, allowing height adjustment without lifting the unit. It is appropriate for both indoor mechanical rooms and outdoor concrete pad installations where a stable, vibration-dampening foot is required.

Key Features

• 4,500 lb load capacity per mount for heavy mechanical equipment support
• 3/4-10 threaded steel stud for direct engagement with tapped equipment frames
• 6.25-inch round neoprene pad base provides vibration isolation and surface protection
• 5-inch stud length allows height adjustment range to accommodate uneven surfaces
• 3/4-inch hex size for easy wrench adjustment during leveling
• Yellow-coated steel construction suited for indoor and outdoor service environments

Compatibility

Designed as a general-purpose OEM-style studded leveling mount for equipment with 3/4-10 tapped mounting points, including HVAC units, compressors, pumps, and industrial machinery bases requiring a high-capacity adjustable foot.

Installation Notes

Installation is performed by licensed HVAC technicians, millwrights, or qualified mechanical contractors. De-energize and lock out all equipment before positioning or adjusting mounting feet. Thread the stud fully into the equipment base before setting the unit down, then adjust height by rotating the stud with a wrench on the 3/4-inch hex. Verify level in two axes before final tightening. Consult the equipment manufacturer's base-mounting requirements and applicable mechanical codes for proper anchoring of the base pad to the mounting surface.
