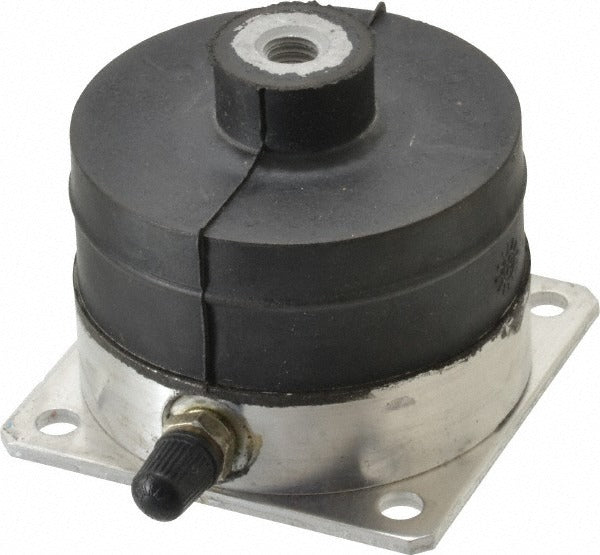

Tech Products 52001 Pneumatic Leveling Mount 3/8-16 Thread

Product Description

The TECH PRODUCTS 52001 is a pneumatic leveling mount designed to isolate vibration and provide adjustable leveling support for industrial equipment. Built around a 3/8-16 threaded stud, this mount accepts loads up to 100 pounds and uses an air-filled rubber element to dampen vibration transmitted through the base. With a 3-inch overall width and a 2.5-inch height, it fits into tight equipment footprints. Maintenance technicians and millwrights install these mounts under compressors, pumps, motors, and light machinery where floor-level vibration control is required. The unit weighs 0.6 pounds and ships as a single piece.

This leveling mount is suited for light-duty industrial and commercial applications where pneumatic isolation is preferred over solid rubber mounts. Typical installations include bench-top machinery, HVAC fan assemblies, small compressors, and production equipment mounted to concrete or steel floors. The 1/4-inch mounting hole diameter accommodates standard anchor hardware. The 3-inch base diameter distributes the load evenly across the mounting surface, making it a straightforward drop-in solution for new installs or retrofits where existing solid mounts have allowed excess vibration transmission.

Key Features

• 3/8-16 threaded stud for secure equipment attachment
• 100 lb rated load capacity per mount
• Pneumatic air-cushion element provides vibration and shock isolation
• 3-inch base diameter with 1/4-inch mounting hole for standard anchor hardware
• 2.5-inch installed height fits low-clearance equipment bases
• Lightweight at 0.6 pounds - easy to handle during installation

Compatibility

Designed as an OEM-style replacement or new-installation pneumatic leveling mount for light industrial equipment requiring a 3/8-16 threaded mount with a 3-inch base diameter and 100 lb load capacity per mount point.

Installation Notes

Pneumatic leveling mounts are typically installed by millwrights or maintenance technicians following equipment manufacturer torque and leveling procedures. Power down and de-energize all equipment before lifting or repositioning. Secure the base flange to the floor using appropriate anchor hardware through the 1/4-inch mounting hole before applying equipment load. Do not exceed the rated 100 lb load capacity per mount point, and verify that all mount points share the load evenly to prevent premature air-element failure.
