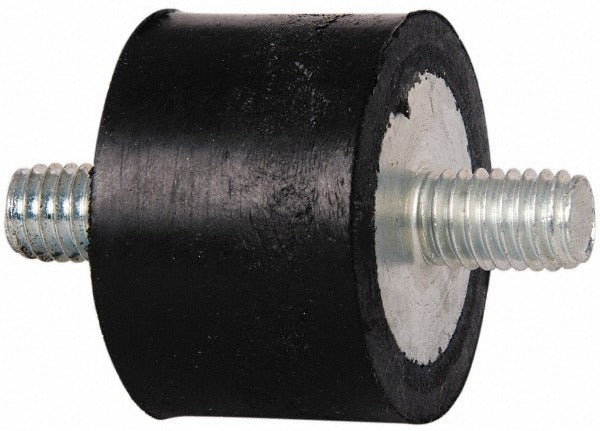

Tech Products 51394 Stud Stud Vibration Isolator 270 Lb

Product Description

The TECH PRODUCTS 51394 is a stud-to-stud vibration isolator rated for 270 pounds of load capacity. It measures 1.5 inches in diameter and 1 inch in height, with a 3/8-16 threaded stud connection on both ends. This mount is designed to reduce structure-borne vibration and noise transmitted from mechanical equipment to the supporting structure. HVAC technicians, plumbers, and mechanical contractors install these isolators as part of equipment mounting assemblies where vibration attenuation is required. The compact, low-profile design fits a wide range of mounting configurations.

This vibration isolator is suited for residential and light commercial HVAC and mechanical applications. It is commonly installed beneath compressors, condensing units, fans, pumps, and similar rotating equipment where vibration and noise transmission to the building structure must be minimized. The stud-to-stud configuration allows direct attachment between the equipment base and the mounting surface without additional hardware adapters. It is typically installed in sets of four or more depending on equipment weight and manufacturer mounting requirements.

Key Features

• 270-pound load capacity per isolator for reliable equipment support
• 3/8-16 threaded stud on both ends for direct bolt-in installation
• 1.5-inch overall diameter and 1-inch height for compact, low-profile mounting
• Reduces structure-borne vibration and airborne noise from rotating mechanical equipment
• Stud-to-stud design eliminates the need for additional mounting adapters

Compatibility

Designed as an OEM-style replacement or new-installation vibration isolator for compressors, pumps, fans, and other rotating mechanical equipment that use 3/8-16 threaded mounting studs.

Installation Notes

Installation is typically performed by licensed HVAC technicians or mechanical contractors as part of equipment mounting procedures. Power down and lockout-tagout all equipment before servicing mounting hardware. Use appropriately sized wrenches to thread the studs to the equipment base and mounting surface, taking care not to overtighten and compress the isolator element beyond its design range. Verify total equipment weight is distributed evenly across all isolators to achieve rated attenuation performance.
