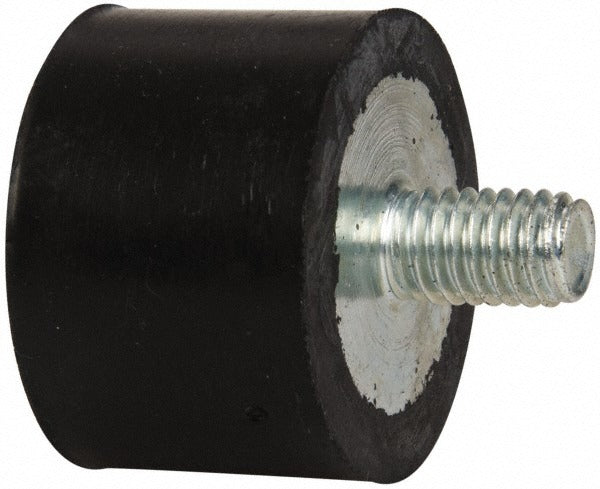

Tech Products 51384 Vibration Isolator 270 Lb Stud Plate

Product Description

The TECH PRODUCTS 51384 is a stud and plate style vibration isolator rated for 270 pounds of load capacity. It measures 1.5 inches in diameter and 1 inch in height, with a 3/8-16 thread size for secure mounting. This isolator is designed to absorb and dampen mechanical vibration between equipment and its mounting surface, reducing noise transmission and protecting structural connections. HVAC technicians and mechanical contractors install this type of isolator on compressors, fan assemblies, air handlers, and other rotating or reciprocating equipment where vibration isolation is required.

This isolator suits residential and light commercial HVAC applications where compact, low-profile mounting hardware is needed. The stud and plate design allows it to be installed in-line between equipment bases and mounting frames or curbs. Its 270-pound load rating covers a wide range of small to mid-sized mechanical equipment. The 3/8-16 thread is a common size across many OEM mounting configurations, making this isolator a practical fit for new installations and replacement work alike.

Key Features

• 270-pound load capacity for reliable equipment support and vibration control
• 3/8-16 thread size compatible with standard mechanical mounting hardware
• Compact profile at 1.5 inches in diameter and 1 inch in height
• Stud and plate mount type for versatile in-line or base installation
• Reduces vibration transmission to structure and connected piping or ductwork

Compatibility

Designed as an OEM-style replacement or new-installation vibration isolator for HVAC compressors, fan motors, air handlers, and similar mechanical equipment requiring a 3/8-16 stud and plate mount configuration.

Installation Notes

Installation is typically performed by licensed HVAC technicians or mechanical contractors. De-energize and lock out the equipment before servicing any mounting hardware. Use calibrated torque tools appropriate for 3/8-16 fasteners and follow the equipment manufacturer's mounting specifications. Ensure the isolator is oriented correctly per the load direction to achieve rated isolation performance.
