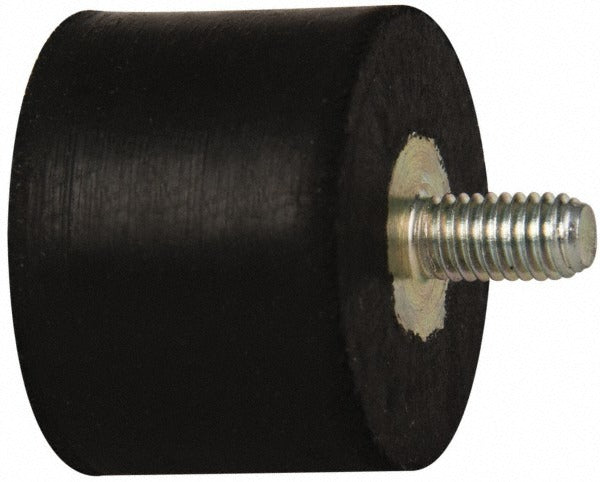

Tech Products 51136 Vibration Isolator 55 Lb Plate Stud

Product Description

The TECH PRODUCTS 51136 is a plate and stud style vibration isolator rated for loads up to 55 pounds. It is designed to isolate vibration and reduce noise transmission between mechanical equipment and the mounting surface. At 1 inch in diameter and 0.75 inches in height, this compact isolator fits into tight mounting spaces where standard-size mounts will not. The 10-32 threaded stud connection provides a secure, positive attachment point. HVAC technicians, mechanical contractors, and equipment installers use this type of isolator on small motors, fans, compressors, and other vibrating components to protect structural connections and extend equipment service life.

This isolator is suited for light-duty residential and commercial HVAC applications where vibration control is needed at a compact mounting point. Typical uses include small fan motors, blower assemblies, control boxes, and similar equipment mounted to sheet metal panels or equipment frames. Its low-profile design and standard 10-32 thread make it a practical choice for retrofit and new-installation work where space around the mounting point is limited.

Key Features

• 55-pound load capacity for light-duty vibration isolation applications
• 10-32 plate and stud thread configuration for positive mechanical attachment
• 1 inch overall diameter fits compact mounting locations
• 0.75-inch height keeps the mounting profile low
• Reduces vibration transmission to equipment frames, panels, and structural surfaces

Compatibility

Designed as an OEM-style replacement or upgrade isolator for small motors, fans, and vibrating mechanical components requiring a 10-32 plate and stud mount with a maximum 55-pound load rating.

Installation Notes

Installation is typically performed by HVAC technicians or mechanical contractors as part of equipment mounting or motor replacement work. Power down and lock out the equipment before servicing any mounting hardware. Use appropriately sized hand tools for the 10-32 thread and do not overtighten, as excessive torque can compromise the isolator material and reduce isolation effectiveness. Verify the installed load does not exceed the 55-pound rated capacity.
