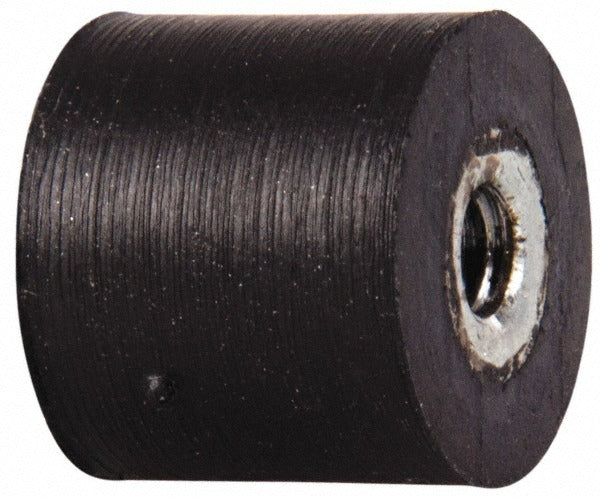

Tech Products 51052 Plate Plate Vibration Isolator

Product Description

The TECH PRODUCTS 51052 is a plate-to-plate vibration isolator rated for up to 18 pounds of load capacity. This compact isolator is designed to absorb and dampen vibration between two mounting surfaces, reducing noise transmission and mechanical stress in equipment installations. With an 8-32 thread size and a diameter of 9/16 inches at just 1/2 inch in height, it fits into tight mounting configurations where space is limited. HVAC technicians, equipment installers, and mechanical contractors use these isolators to protect sensitive components and surrounding structures from vibration fatigue.

This isolator is suited for light-duty vibration isolation applications in residential and commercial HVAC systems, refrigeration equipment, small motors, fans, and control panel hardware. Its plate-to-plate design allows it to be sandwiched between equipment surfaces and a mounting substrate, providing isolation without requiring a threaded stud or custom bracket. The 8-32 thread size is a standard machine screw specification commonly found on small HVAC components, electrical enclosures, and electronic control assemblies.

Key Features

• 18-pound load capacity per isolator for light-duty vibration damping
• Plate-to-plate design mounts between two flat surfaces for direct isolation
• 8-32 thread size matches standard machine screw hardware used in HVAC and electrical applications
• Compact profile at 9/16 inch diameter and 1/2 inch height for space-constrained installations
• Reduces vibration transmission and noise in mechanical and electrical equipment assemblies

Compatibility

Designed as an OEM-style replacement or supplemental component for light-duty vibration isolation applications using standard 8-32 machine screw mounting points in HVAC, refrigeration, and mechanical equipment.

Installation Notes

Installation is typically performed by HVAC technicians or mechanical contractors as part of equipment mounting or control component assembly. Power down all equipment before servicing or replacing vibration isolators. Ensure the mating surfaces are clean and flat to achieve full contact with the isolator plates. Do not exceed the rated 18-pound load capacity per isolator; use multiple isolators as required by the equipment manufacturer to distribute load correctly.
