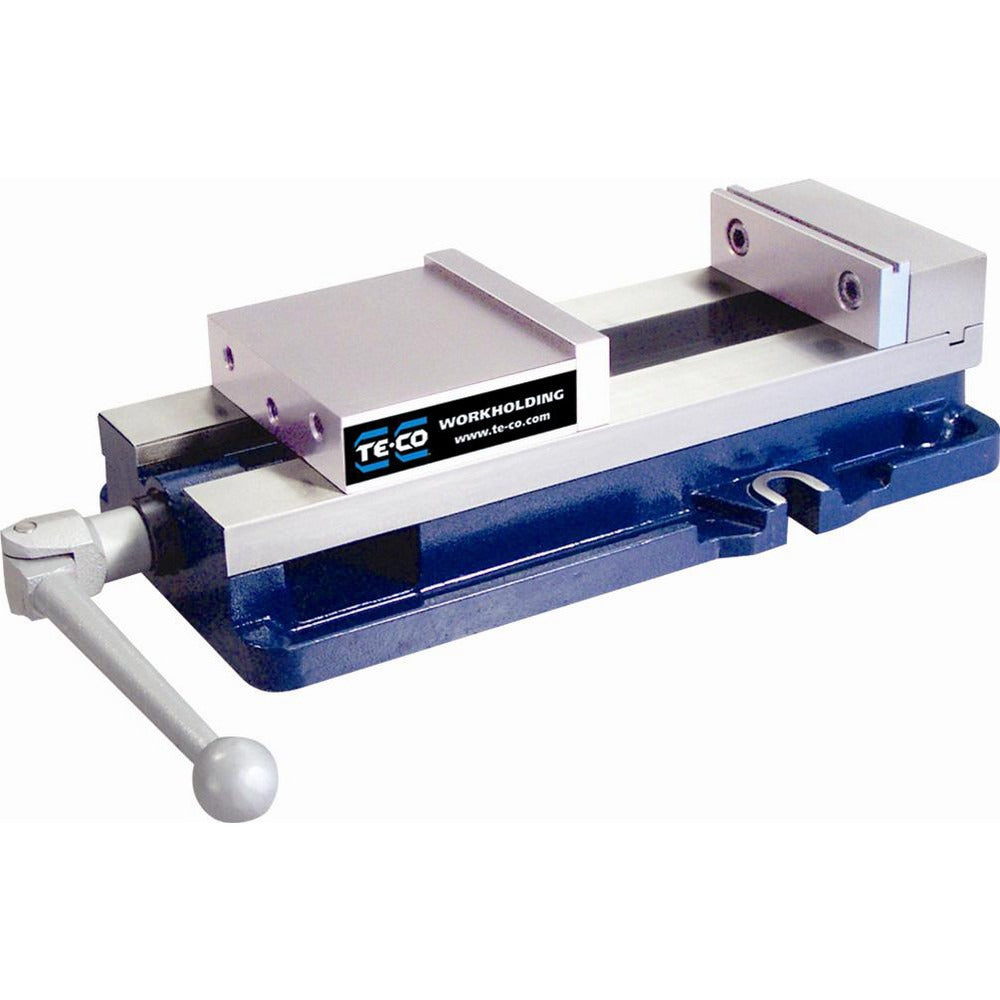

Te-co PWS-4600 Machine Vise 6 Inch Single Station

Product Description

The TE-CO PWS-4600 is a single-station horizontal machine vise built for precision workholding on milling machines, drill presses, and similar machining equipment. Constructed from steel throughout, it features detachable jaws with a 1.38-inch jaw height and a maximum jaw opening capacity of 6 inches. The throat depth measures 1.38 inches, giving adequate clearance for a wide range of workpiece profiles. With a load capacity rated at 7,000 pounds, this vise is suited for demanding production and toolroom environments where secure, repeatable clamping is required. Machinists and toolroom technicians install this vise as a direct workholding solution on standard T-slot machine tables.

The PWS-4600 is designed for horizontal orientation on single-station setups. Its base footprint measures 12.64 inches in length by 6.30 inches in width, with a base height of 2.25 inches and an overall height of 3.63 inches. This sizing makes it appropriate for mid-size vertical milling machines and similar machining centers in both job shop and production environments. The detachable jaw design allows for jaw swaps to accommodate different workpiece geometries without replacing the full vise body.

Key Features

• Steel vise body and jaw material for rigidity and long service life
• Detachable jaws allow quick changeover for different workpiece profiles
• 6-inch maximum jaw opening accommodates a wide range of part sizes
• 7,000-pound load capacity supports heavy-duty machining operations
• Horizontal single-station orientation for standard T-slot table mounting
• 1.38-inch throat depth provides clearance for varied workpiece geometries

Compatibility

Designed as an OEM-style single-station machine vise for use on standard T-slot milling machine tables and similar horizontal machining setups.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. The machine spindle must be powered down and the table brought to a safe position before mounting. Secure the vise to the machine table using appropriate T-slot hardware and verify alignment with a dial indicator before tightening. Follow the machine tool manufacturer guidelines for table load limits and clamping torque specifications.
