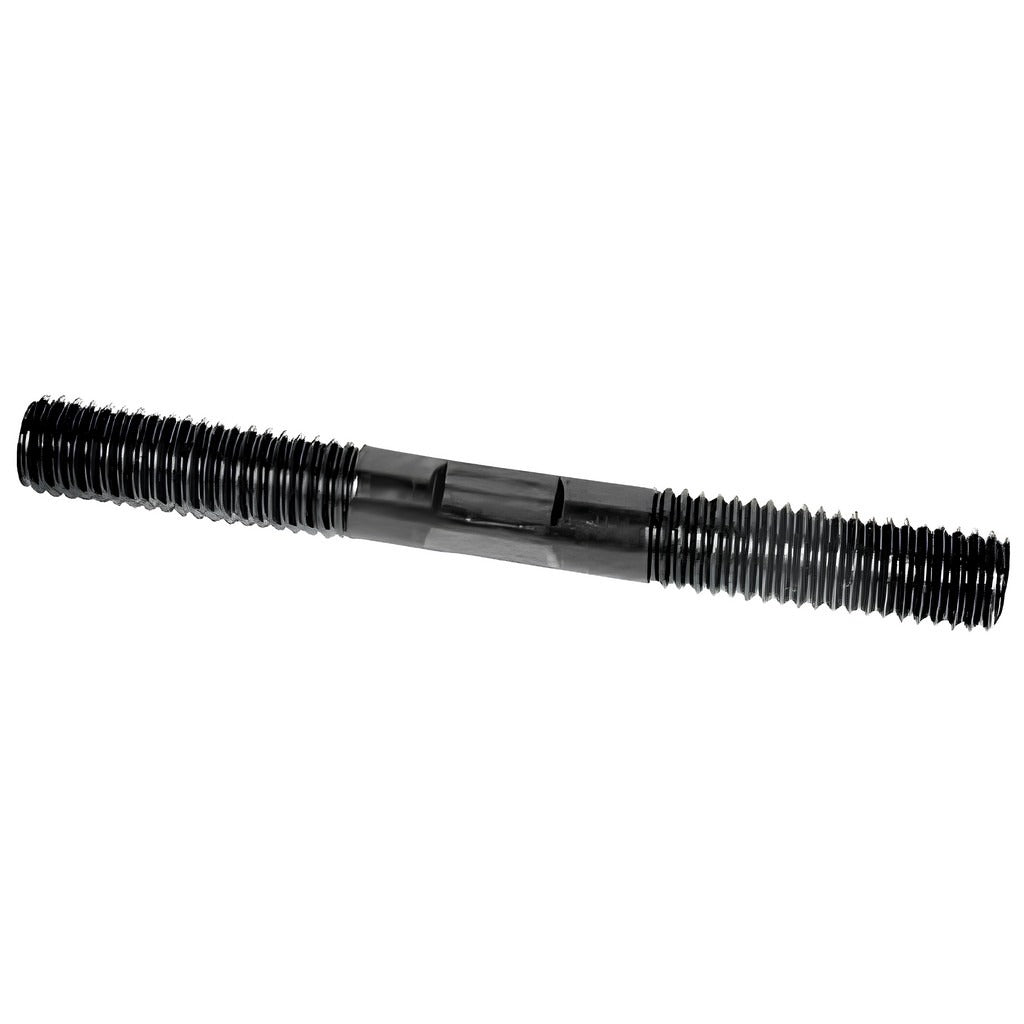

Te-co 40702 Equal Double Threaded Stud 1/2-13 2 Inch Oal

Product Description

The TE-CO 40702 is an equal double threaded stud designed for secure clamping and fixturing applications in industrial and trade environments. Built from medium-carbon steel with a black oxide finish, this stud delivers consistent thread engagement on both ends. It features a 1/2-13 thread size with a 2 inch overall length and a 3/4 inch threaded length on each end, separated by a 1/2 inch unthreaded shank. The black oxide finish provides basic corrosion resistance and reduces galling during installation. This driver stud is commonly installed by machinists, millwrights, and maintenance technicians working with tooling plates, jigs, and fixture setups.

The 40702 is suited for use in workholding and fixturing applications where a stud must thread into a tapped hole on one end and accept a nut or clamp on the other. The equal thread configuration allows the stud to be driven flush into a receiver and then used as a stud bolt for clamping components. Typical installations include T-slot tables, fixture plates, and modular workholding systems. The material grade 5 rating indicates suitable tensile strength for moderate clamping loads in general industrial use.

Key Features

• Equal double threaded design with 1/2-13 threads on both ends for symmetrical engagement
• 2 inch overall length with 3/4 inch threaded length per end and 1/2 inch unthreaded shank
• Medium-carbon steel construction at material grade 5 for reliable tensile strength
• Black oxide finish for basic corrosion resistance and reduced galling
• Driver stud configuration for tool-driven installation into tapped holes
• No flat on shank - designed for driver installation, not wrench grip

Compatibility

Designed as an OEM-style replacement or direct-fit stud for workholding fixtures, clamping systems, and tooling plates that use 1/2-13 threaded studs with a 2 inch overall length.

Installation Notes

Installation is performed by machinists or maintenance technicians using a stud driver or appropriately sized installation tool. Always verify the tapped receiver hole meets 1/2-13 thread specification and is clean and free of debris before driving the stud. Do not use a wrench on the unthreaded shank, as this stud has no flat for wrench engagement. Apply thread-locking compound or anti-seize as required by the application and applicable facility standards.
