TCS Basys Controls TS3001 Temperature Sensor – Secure

Product Description

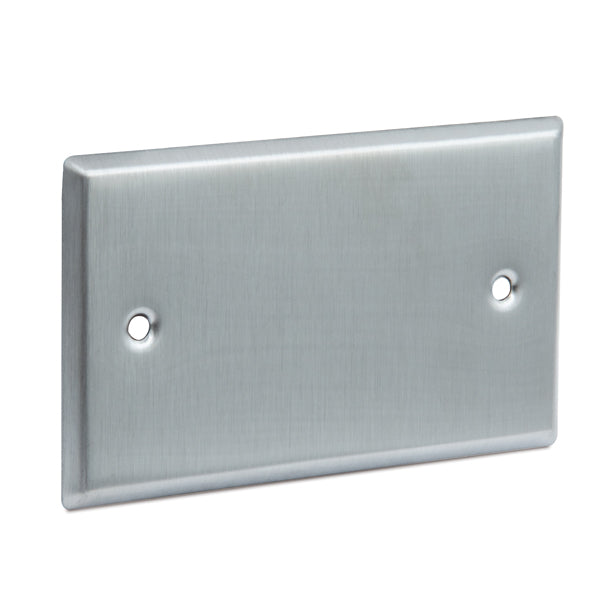

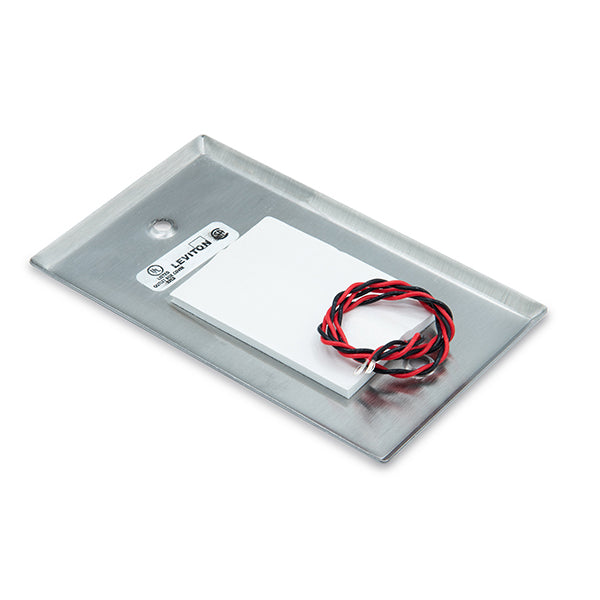

The TCS Basys Controls TS3001 is a secure temperature sensor designed for standard spaces where security is essential. This sensor features the same specifications as the TS1007 but includes a protective exterior cover plate.

• Single-point sensor accuracy of +/–0.1% at thirty-two degrees Fahrenheit (zero degrees Celsius)
• Compliance with DIN IEC 751
• Operating temperature range from minus fifty degrees Fahrenheit (minus forty-five point six degrees Celsius) to three hundred seventy-five degrees Fahrenheit (one hundred ninety point six degrees Celsius)

Product Highlights

Ideal for applications requiring high security and accuracy, this sensor is resistant to tampering and environmental factors.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS3001

Technical Specifications

• Single-point sensor accuracy: +/–0.1% @ 32°F (0°C)
• Temperature coefficient: 0.00385 Ω/Ω/°C
• Reference resistance: 1000 Ω @ 32°F (0°C)
• Compliance: DIN IEC 751
• Response time (90%): Air @1m/s: 25 seconds; Air @3m/s: 17 seconds
• Operating temperature: –50 to 375°F (–45.6 to 190.6°C)
• Maximum current: 5 mA; recommended: 1 mA
