Product Description

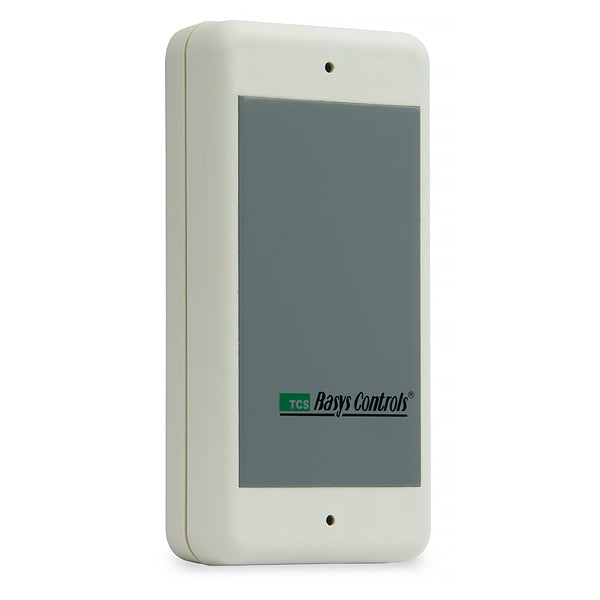

The TCS Basys Controls TS3000 is a platinum RTD (Resistance Temperature Detector) sensor suitable for HVAC applications. It can function as an averaging sensor when paired with the UbiquiSTAT's built-in sensor.
- Single-point sensor accuracy of +/−0.1% at thirty-two degrees Fahrenheit
- Operates effectively in a temperature range from negative fifty to three hundred seventy-five degrees Fahrenheit
- Response time of twenty-five seconds in air at one meter per second
Product Highlights
This sensor is ideal for accurate temperature measurement in HVAC systems.
Product Information
Standard Information
-
Brand: TCS Basys Controls
-
MPN: TS3000
Technical Specifications
-
Single-point sensor accuracy: +/−0.1% @ 32°F (0°C)
-
Temperature coefficient: 0.00385 Ω/Ω/°C
-
Reference resistance: 1000 Ω @ 32°F (0°C)
-
Compliance: DIN IEC 751
-
Response time (90%): Air @1m/s: 25 seconds, Air @3m/s: 17 seconds
-
Operating temperature: −50 to 375°F (−45.6 to 190.6°C)
-
Maximum current: 5 mA; recommended: 1 mA
