TCS Basys Controls TS2023A Remote Zone Sensor with Setpoint Adjustment

Product Description

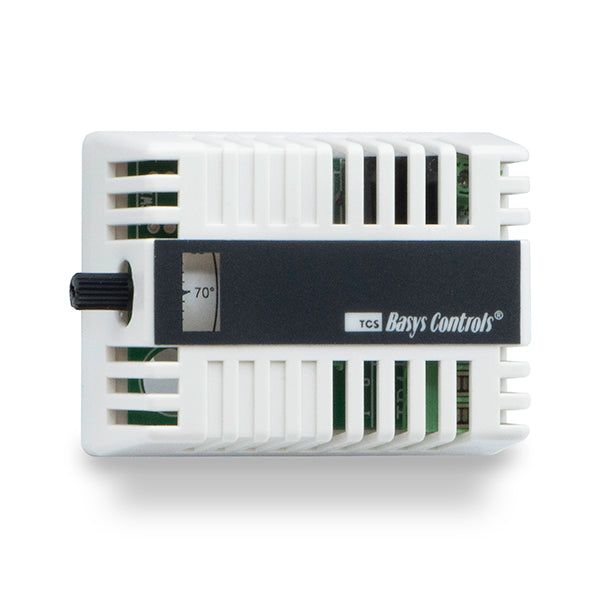

The TCS Basys Controls TS2023A is a remote zone sensor designed for use with the SZ1025b system. This sensor features a 1000 ohm platinum RTD for accurate temperature measurement and includes an override and setpoint adjustment functionality. The sensor is housed in a ventilated ASB plastic enclosure with a sturdy plastic base. It is suitable for installation on drywall, block, or within a standard two-inch by four-inch handy box using a TQ Series plate adapter.

• Accurate temperature reading with minimal deviation
• 5 mA maximum current; optimal performance at 1 mA
• Adaptable installation options for various environments

Product Highlights

The TS2023A sensor is ideal for HVAC applications, ensuring precise temperature control within zones. Its compact design facilitates easy installation in diverse settings.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS2023A

Technical Specifications

• Single-point sensor accuracy: +/– 0.1% @ 32°F (0°C)
• Temperature coefficient: 0.00385 Ω/Ω/°C
• Reference resistance: 1000 Ω @ 32°F (0°C)
• Compliance: DIN IEC 751
• Response time (90%): Air @ 1m/s: 25 seconds; Air @ 3m/s: 17 seconds
• Operating temperature: -50 to 375°F (-45.6 to 190.6°C)
• Maximum current: 5 mA; recommended: 1 mA
