TCS Basys Controls TS1008 Continuous Averaging Sensor – 12'

Product Description

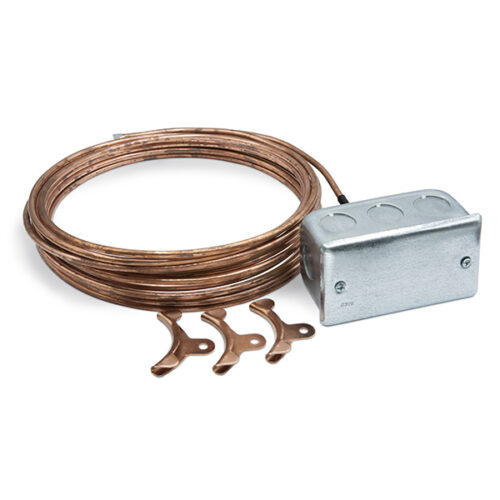

The TCS Basys Controls TS1008 is a 1000 ohm continuous averaging sensor designed for accurate temperature measurements in air ducts. This sensor features mounting clips for easy installation in a zig-zag configuration across airflow, enhancing measurement quality.

• Capable of measuring temperatures from -50 to 375 degrees Fahrenheit.
• Standard compliance with DIN IEC 751 ensures reliability.
• Response times of 25 seconds at one meter per second airflow.

Product Highlights

Reliable performance in HVAC applications for maintaining optimal environmental conditions.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TS1008

Technical Specifications

• Averaging sensor accuracy: +/- 1 degree Fahrenheit @ 70 degrees Fahrenheit (21.11 degrees Celsius)
• Temperature coefficient: 0.00385 Ohm/Ohm/degree Celsius
• Reference resistance: 1000 Ohm @ 32 degrees Fahrenheit (0 degrees Celsius)
• Compliance: DIN IEC 751
• Response time (90%): Air @1m/s: 25 seconds; Air @3m/s: 17 seconds
• Operating temperature: -50 to 375 degrees Fahrenheit (-45.6 to 190.6 degrees Celsius)
• Maximum current: 5 mA; recommended: 1 mA
