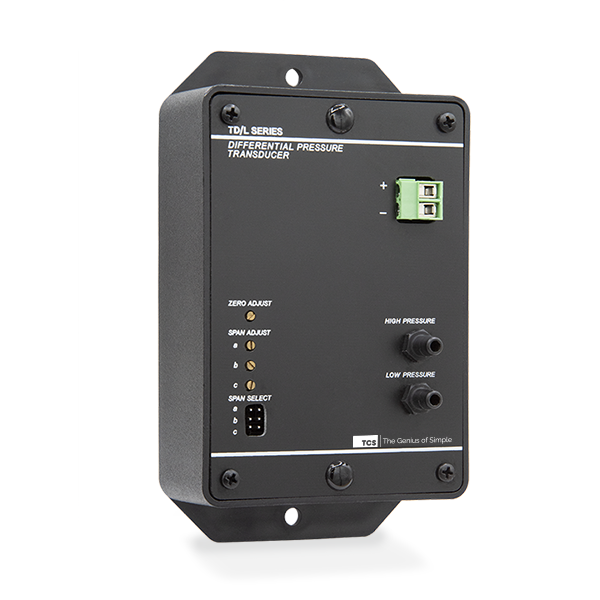

TCS Basys Controls TL1160 Differential Pressure Transducer 12 – 35 VDC

Product Description

The TCS Basys Controls TL1160 Differential Pressure Transducer measures duct static pressure and building pressurization effectively. Its pressure range can vary between minus zero point twenty-five to plus zero point twenty-five, plus zero point seventy-five, or plus one point seventy-five inches of water column (WCD). The TL1160 operates similarly to the TD1190 model, which has a range of zero to one, two, or three WCD.

• Pressure measurement for HVAC systems
• Compatible with non-corrosive gases
• Power supply range of twelve to thirty-five VDC

Product Highlights

This pressure transducer is used in HVAC applications to ensure accurate airflow measurements.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TL1160

Technical Specifications

• Output: 4 – 20 mA DC, 2-wire
• Accuracy: +/– 1% of span @ 77°F (25°C)
• Linearity: +/– 0.2% FSO
• Repeatability: +/– 0.05% FSO
• Hysteresis: +/– 0.025% FSO
• Thermal Effects: +/– 0.06% FSO/°F (+/– 0.10% FSO/°C) relative to 69°F (20°C)
• Media Compatibility: Non-ionic, non-corrosive gases
• Supply Voltage: 12 – 35 VDC
• Polarity Protection: Diode protected
