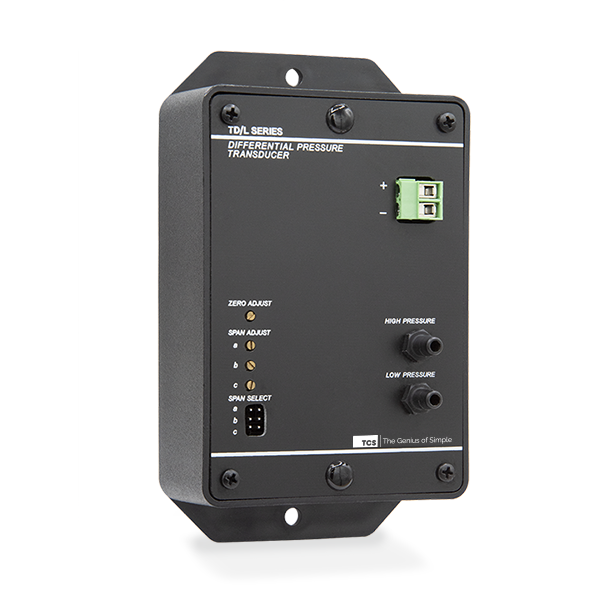

TCS Basys Controls TD1190 Differential Pressure Transducer 4-20 mA DC

Product Description

The TCS Basys Controls TD1190 Differential Pressure Transducer is designed for accurate measurement of duct static pressure and building pressurization. It functions effectively in various differential air flow systems. The transducer measures differential pressure from zero to one, two, or three WCD. It shares functionality with the TL1160 Pressure Transducer, which has a pressure range of minus zero point twenty-five to plus zero point twenty-five, plus zero point seventy-five, or plus one point seventy-five WCD.

• Suitable for duct static pressure measurement
• Compatible with non-ionic, non-corrosive gases
• Utilizes a wide voltage supply of twelve to thirty-five VDC

Product Highlights

This transducer is ideal for HVAC applications, ensuring precise airflow measurements and building pressurization monitoring.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: TD1190

Technical Specifications

• Linearity: ± 0.2% FSO
• Repeatability: ± 0.05% FSO
• Hysteresis: ± 0.025% FSO
• Thermal Effects: ± 0.06% FSO/°F (± 0.10% FSO/°C) relative to sixty-nine °F (twenty °C)
• Media Compatibility: Non-ionic, non-corrosive gases
• Supply Voltage: 12 – 35 VDC
• Output: 4 – 20 mA DC, 2-wire
• Polarity Protection: Diode protected
