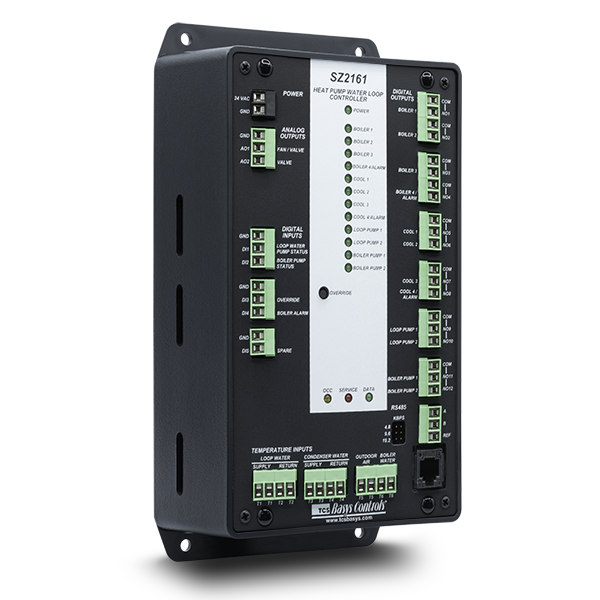

TCS Basys Controls SZ2161 Heat Pump Water Loop Controller

Product Description

The TCS Basys Controls SZ2161 is a microprocessor-based controller designed for managing water loops in heat pump systems. This controller is ideal for applications in commercial and industrial heating and cooling systems.

• Microprocessor-based control
• Multiple temperature inputs
• Options for stand-alone or network operation

Product Highlights

The SZ2161 ensures efficient operation with various input and output options for comprehensive system management.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: SZ2161

Technical Specifications

• Inputs: Six 1000 Ohm PtRTD, momentary override, five digital (dry contact)
• Loop water temperature range: Twenty to one hundred twenty degrees Fahrenheit
• Condenser water temperature range: Twenty to one hundred twenty degrees Fahrenheit
• Boiler water temperature range: Forty to two hundred forty degrees Fahrenheit
• Outdoor air temperature range: Negative thirty-four to one hundred sixty degrees Fahrenheit
• Outputs: Twelve digital (SPST dry contact, twenty-four VAC @ one amp) and two four to twenty milliamp DC
