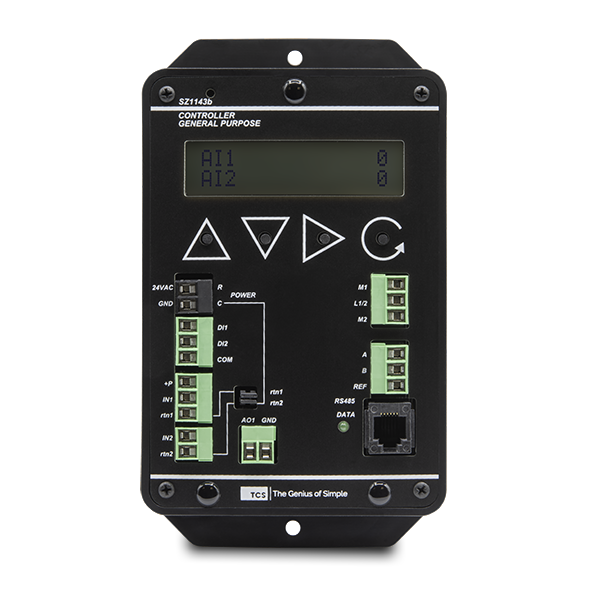

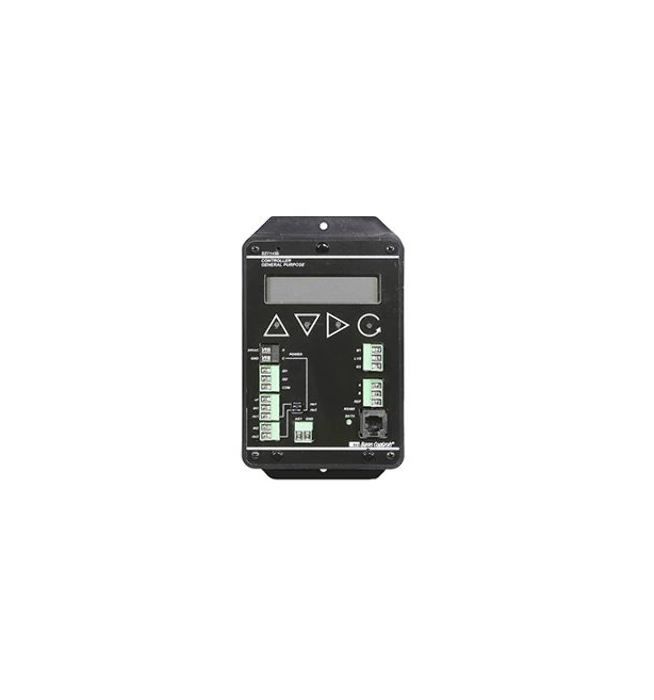

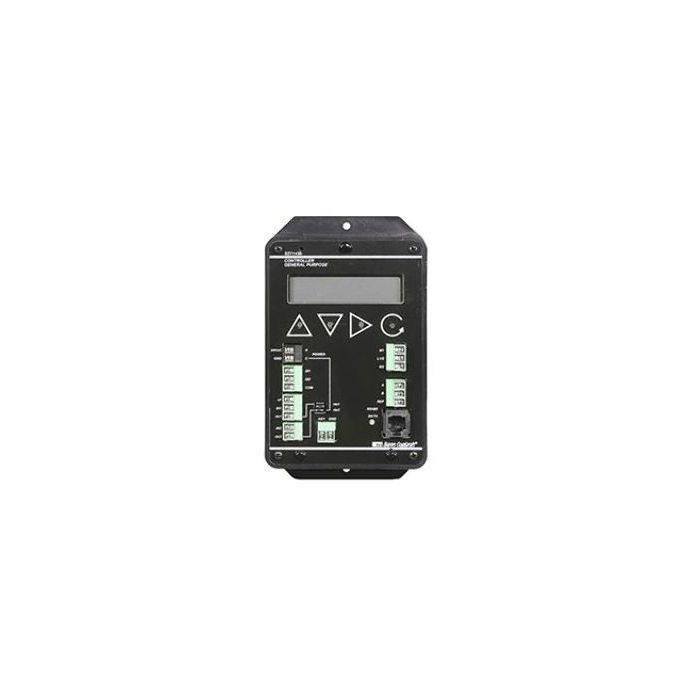

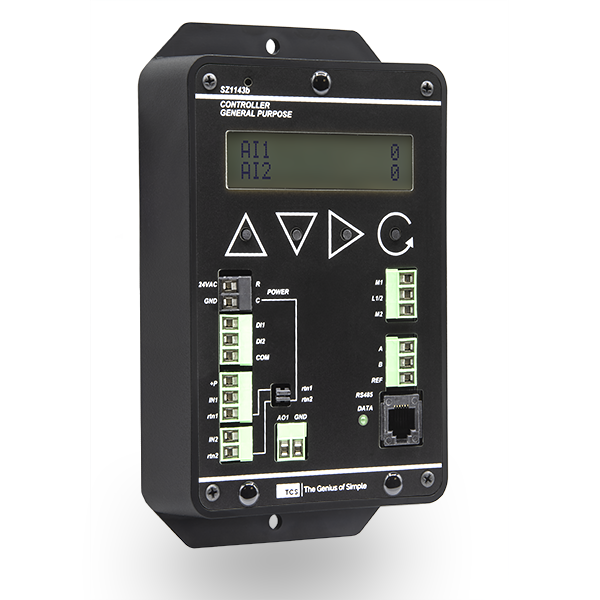

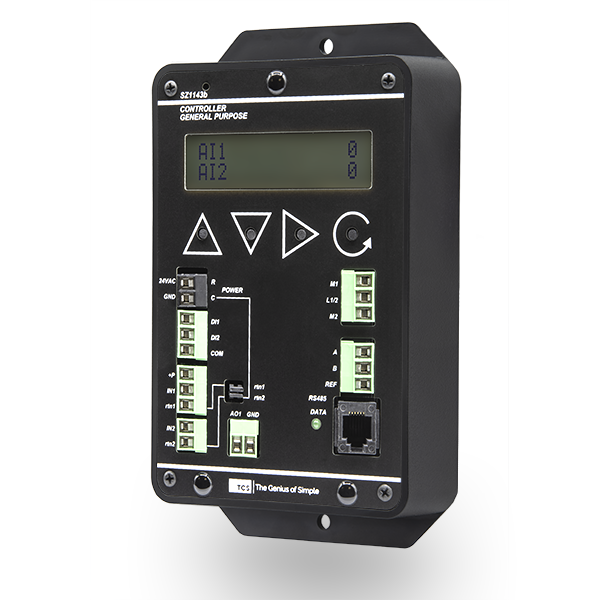

TCS Basys Controls SZ1143B General Purpose Controller, 7 IO

Product Description

The TCS Basys Controls SZ1143B is a microprocessor-based general purpose controller. It is suitable for various applications such as general control, remote setpoint control, general input reset ratio control, and differential input control including temperature, pressure, and humidity.

• Standalone or network operation
• Adjustable controls for P, I, and D on modulating outputs
• Includes application sequences for humidification and dehumidification

Product Highlights

This controller offers flexible installation options and comprehensive control functionalities tailored for HVAC applications.

Product Information

Standard Information

• Brand: TCS Basys Controls
• Part Number: SZ1143B

Technical Specifications

• Inputs: Two 4 to 20 mA DC analog inputs and two digital inputs (dry contact)
• Outputs: One 4 to 20 mA DC analog output and two digital outputs (SPST dry contact, 24 VAC at 1A)
• Display: 32-character LCD
• Communications: RS485, half-duplex, TCSbus
