Product Description

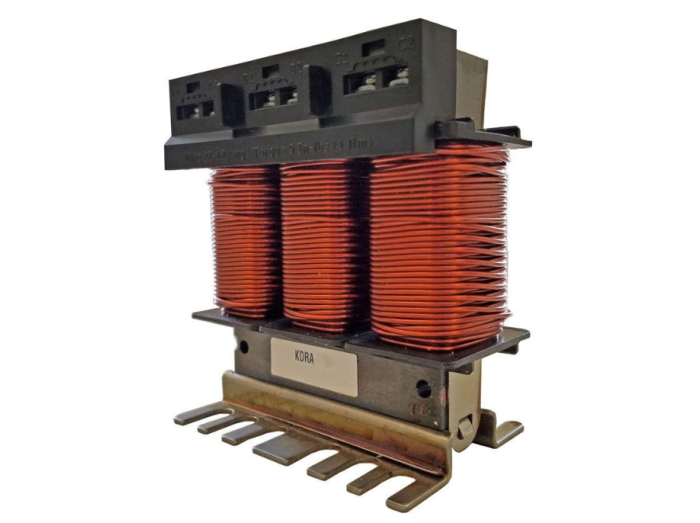

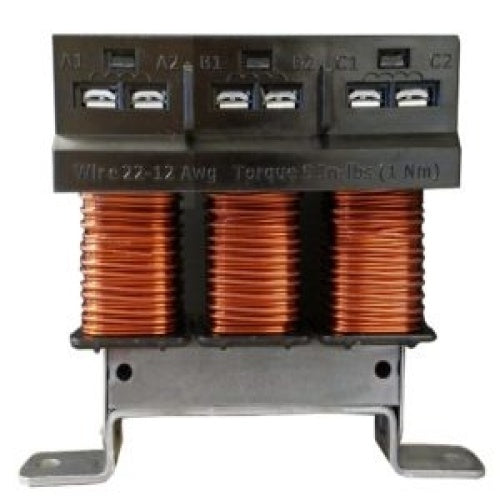

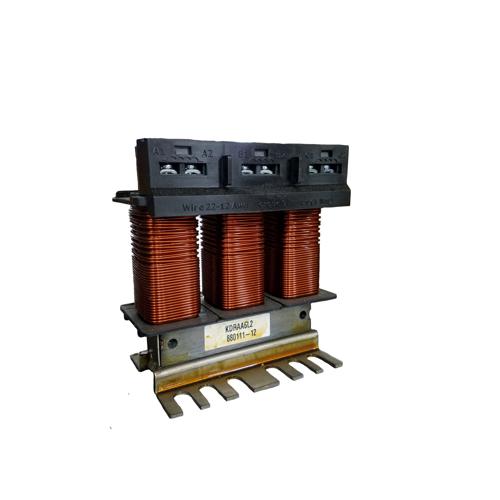

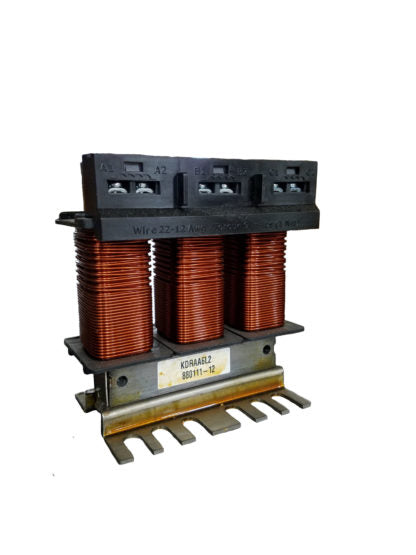

The TCI KDRAA6L2 is a KDR series line reactor designed to protect both your drive and applications. It operates at 480V, 4 HP, and 7.6 Max Amps. The KDR series protects variable frequency drives and other sensitive devices from electrical distortion, extending motor life and reducing tripping.
- Protects drives and applications from electrical distortion
- Extends motor life and reduces tripping
- Improves power factor and reduces motor heating and noise
Product Highlights
The TCI KDR series line reactors offer impedance against harmonics, protecting equipment and increasing drive uptime.
Product Information
Standard Information
-
Brand: TCI
-
Manufacturer Part Number: KDRAA6L2
-
Country of Origin: US
Technical Specifications
-
Rated Voltage: 480 V
-
Horsepower (HP): 4
-
Impedance Value: 3% Low Z
-
DIN Rail Option: None
-
UL: UL Listed
-
Enclosure Type: Open
-
Watts Loss: 39
-
Phase: 3
-
Hertz (Hz): 50/60
-
Temp Rise: 135
-
Model: KDRAA6L2
-
Country of Origin: US
-
Brand: TCI TRANS COIL
-
Product Condition: New
-
Percentage Impedance: 3%
-
Enclosure Rating: IP 00
-
Heat Loss: 39.2 W
-
Rated Amps: 7.6 A
-
Amp Rating: 7.5 Amp
-
Horsepower: 4 hp
-
Impedance: 5% Impedance
-
Series: KDR Series
-
Max Amps: 7.6
-
RoHS Indicator: Compliant
-
Manufacturer Part Number: KDRAA6L2
-
Manufacturer: TCI
-
Product Series: KDR
-
Family Series: TCI Line Reactors, KDR Series
-
Description: KDR, 480V, 4 HP, 6.20 Motor Amps, 7.6 Max Amps, Narrow Foot, 3 Phase, Open, Line Inductor, 3pct. Impedance.
-
Nominal Voltage: 480 V
-
Voltage: 480 V
-
Enclosed: No
-
Current Rating: 7.6 A
-
Inductance: 0.00356 H
-
Approvals: UL
-
VFD Filter Voltage: 480 Volt
-
VFD Filter Enclosure: Open
-
VFD Filter Includes Heater: No Heater
-
VFD Filter Horsepower: 4 HP
-
VFD Filter Impedance: 3%
-
VFD Filter Line: (KDR) Reactor
-
VFD Filter Protected Side: Load Side (Out)
-
VFD Filter Voltage Phase: Three Phase
-
VFD Filter Motor Amps: 6.2 Motor Amp
-
MPN: KDRAA6L2
