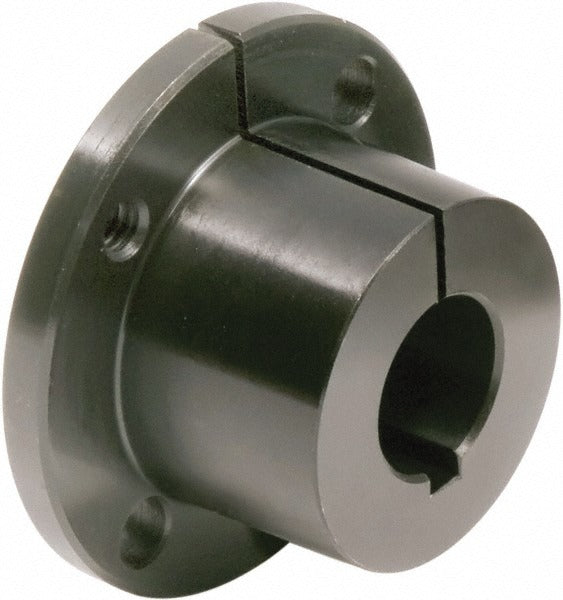

Tb Wood's QT12 Quick-detachable Sprocket Bushing

Product Description

The TB WOOD'S QT12 is a Quick-Detachable (QT) series sprocket bushing designed for use in power transmission drive assemblies. It accepts a 0.5 inch bore with a 0.125 inch keyway width and 0.0625 inch keyway depth, providing a secure, keyed connection between the bushing and shaft. Constructed from steel, the QT12 has an outside diameter of 2.5 inches and an overall width of 1.25 inches. It is rated for a maximum torque of 1,750 inch-pounds. Licensed HVAC, mechanical, and industrial technicians routinely install QT-series bushings when mounting sprockets, sheaves, or pulleys onto drive shafts in belt and chain drive systems.

The QT12 is suited for light-to-medium duty power transmission applications including conveyor drives, fan drives, pump drives, and general industrial machinery. Its Quick-Detachable design allows for straightforward installation and removal without specialized tooling, reducing downtime during routine maintenance or component replacement. The steel construction handles the torsional and radial loads typical of commercial and light industrial drive systems.

Key Features

• Quick-Detachable bushing design for fast installation and removal
• 0.5 inch bore with 0.125 inch keyway width and 0.0625 inch keyway depth for a positive keyed shaft connection
• 2.5 inch outside diameter accommodates sprockets, sheaves, and pulleys in this OD range
• Rated to 1,750 inch-pounds maximum torque
• Steel construction for durability under torsional and radial load
• 1.25 inch overall width fits standard QT-series sprocket hubs

Compatibility

Designed as an OEM-style replacement or direct-fit bushing for sprockets, sheaves, and pulleys in the QT bushing series with an outside diameter range of 1.625 to 2.5 inches. Verify hub bore and keyway dimensions before installation.

Installation Notes

Installation should be performed by a qualified mechanical or power transmission technician. Shut down and de-energize the drive system completely and lock out the power source before beginning any bushing installation or removal. Confirm shaft diameter, keyway dimensions, and hub compatibility prior to assembly. Do not exceed the rated maximum torque specification for this bushing series.
