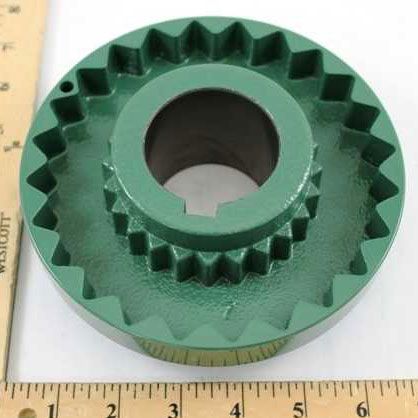

TB Woods 9S218 Sleeve Coupling Flange 2-1/8 in Bore

Product Description

The TB Woods 9S218 Sleeve Coupling Flange is designed for effective power transmission in various mechanical applications. This flange features a bore size of two and one-eighth inches and is made from durable cast iron, ensuring long-lasting performance. It seamlessly fits onto standard shafts and is ideal for use in pumps and other rotating equipment.

• High-strength cast iron construction
• Bored-to-size for slip fit installation
• Max RPM rating of 3750

Product Highlights

This flange is compatible with multiple pump series, including CE and FE, making it a versatile choice for repair and replacement tasks.

Product Information

Standard Information

• Brand: TB Woods
• Part Number: 9S218

Technical Specifications

• Bore Diameter: 2.1250 in
• Flange Diameter: 6.3500 in
• Length Through Bore: 2-13/32 in
• Coupling Overall Length: 3-7/8 in
• Hub End Outside Diameter: 5-1/16 in
• Power Rating: 11.4 hp @ 100 RPM (Hytrel)
• Weight: 6.80 lbs
