Product Description

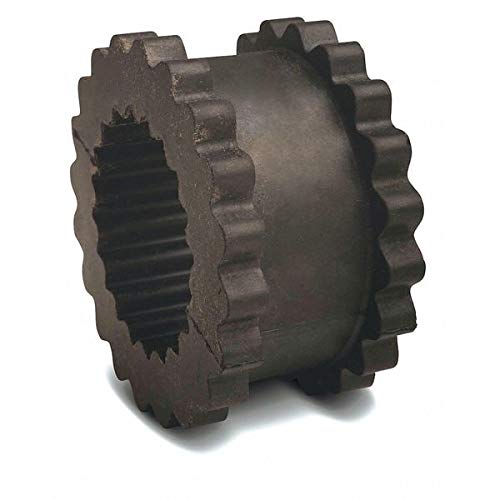

The TB Woods 8JN Sure-Flex Neoprene Sleeve Coupling Insert is designed for reliable power transmission. Constructed with high-quality neoprene, this one-piece solid insert is pivotal for coupling in industrial applications.
- Rated torque of 1,475 inch-pounds providing excellent load handling.
- Operational up to 4,500 RPM, accommodates high-speed requirements.
- Temperature range from zero to 200 degrees Fahrenheit, ensuring performance in various environments.
Product Highlights
With a width of 2.5 inches and an outside diameter of 5.06 inches, the TB Woods 8JN insert is optimal for applications in compressors, conveyors, and more. Its robust design permits angular misalignment up to 1 degree and parallel misalignment up to 0.02 inches, offering versatility and reliability in tough industrial settings.
Product Information
Standard Information
Technical Specifications
-
Material: Neoprene
-
HP Rating @ 100 RPM: 2.34 hp
-
Max RPM: 4,500 RPM
-
Rated Torque: 1,475 in-lb
-
Operating Temperature Range: 0 to 200 degrees Fahrenheit
