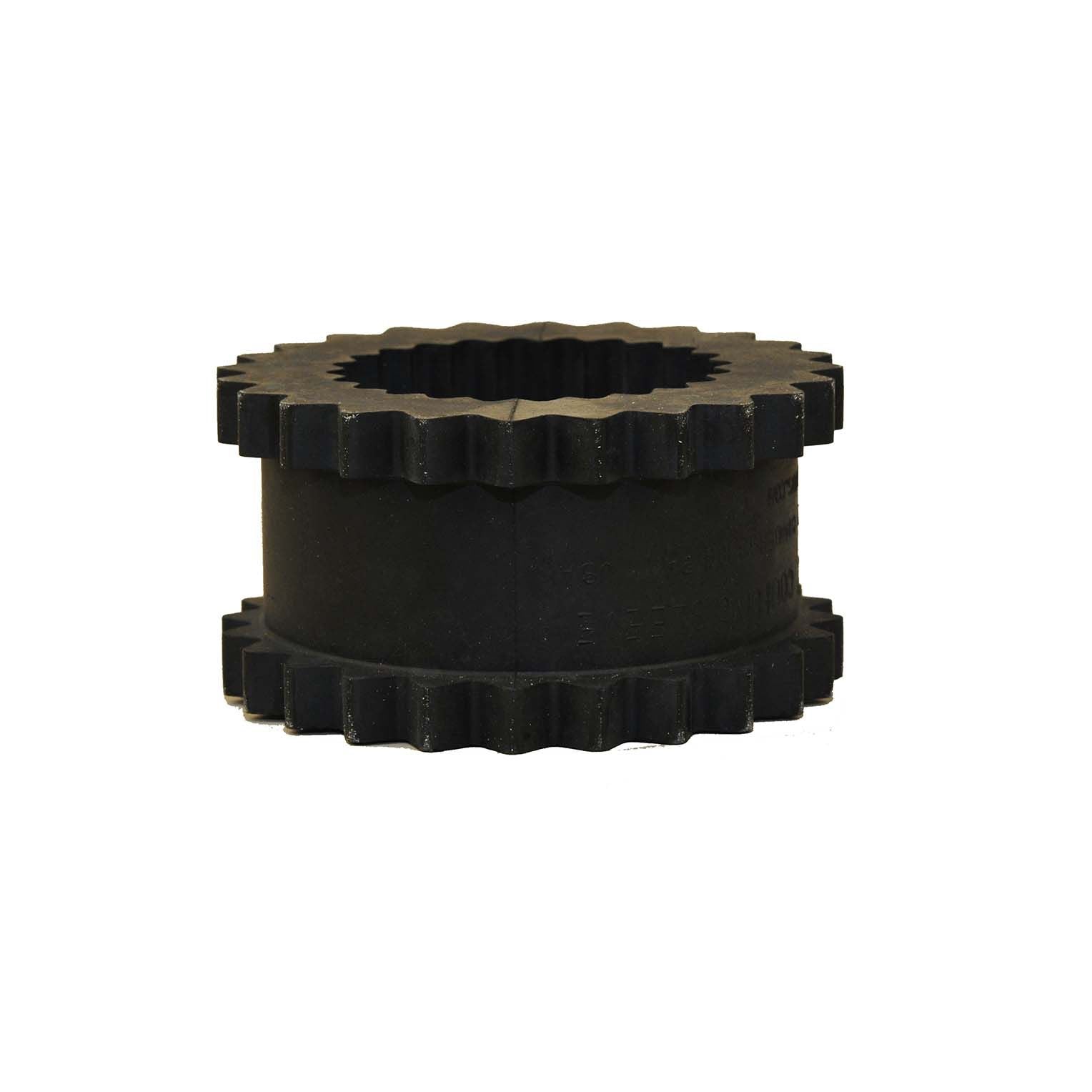

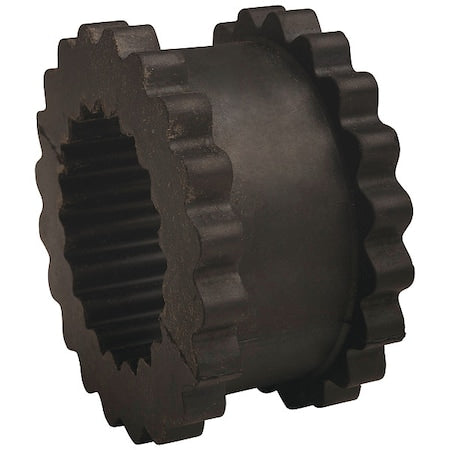

TB Woods 7J Coupling Sleeve Sure Flex

Product Description

The TB Woods 7J coupling sleeve is designed for reliable connections in mechanical systems. This coupling sleeve is also known as the Sure Flex coupling and is suitable for various applications. It is part of a three-part coupling system, consisting of two flanges and a rubber insert, allowing for flexible installation in multiple orientations.

• Compatible with many manufacturers' pumps
• Multi-cog design for versatile alignment
• One-piece construction for durability

Product Highlights

The TB Woods 7J coupling sleeve is an essential component for professionals using pumps and machinery that require robust connections. Its design accommodates angular and parallel misalignments, ensuring a smooth operation.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 7J

Technical Specifications

• Model: 7JE
• Insert Material: EPDM Rubber
• Maximum Speed: 5,250 RPM
• Torque Capacity: 940 in-lb
• Outside Diameter: 4 11/32 inches
• Insert Width: 2 3/16 inches
• Operating Temperature: -30 to 275 degrees F
• Applications: Blowers, compressors, conveyors, mixers, motors, pumps
