Tb Wood's 10H Flexible Solid Sleeve Sure-flex Hytrel

Product Description

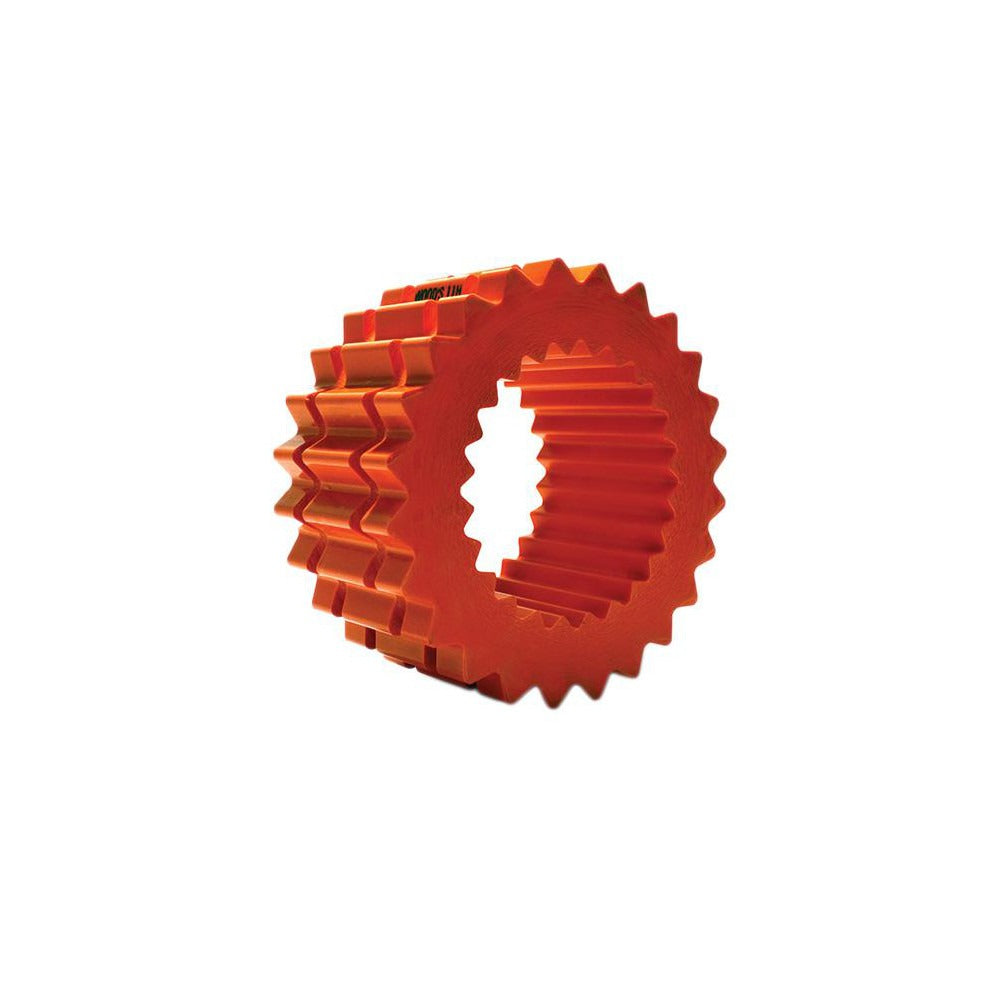

The TB WOOD'S 10H is a flexible one-piece solid sleeve designed for use in the Sure-Flex coupling system. Manufactured from Hytrel, a durable thermoplastic elastomer, this sleeve serves as the insert element that transmits torque between two coupling hubs while absorbing shock, vibration, and minor misalignment. It measures 3-7/16 inches in overall length and 7.0625 inches in outside diameter, and is rated for up to 11,350 in/lb (1,282 N/m) of torque. Mechanical and industrial technicians install this component as part of a complete flexible coupling assembly on rotating drive systems.

The 10H sleeve is used in industrial and commercial power transmission applications where flexible coupling connections are required between shafts on motors, pumps, compressors, and similar rotating equipment. To complete a functional coupling assembly, two Sure-Flex hubs of matching outside diameter are required alongside one sleeve insert. Hub bores may differ, allowing connection of shafts of different diameters within the same coupling system.

Key Features

• Hytrel construction provides flexibility, chemical resistance, and durability in drive coupling applications
• Rated torque capacity of 11,350 in/lb (1,282 N/m)
• One-piece solid sleeve design simplifies assembly and replacement
• 3-7/16 inches overall length with 7.0625 inches outside diameter
• Part of the Sure-Flex coupling system - compatible with hubs of matching outside diameter
• Hubs with different bore sizes may be paired, accommodating varied shaft configurations

Compatibility

Designed for use in the TB WOOD'S Sure-Flex coupling system. Requires two Sure-Flex coupling hubs of the same outside diameter to complete the assembly. Hub bores may be different. Coupling size code 10.

Installation Notes

Installation is typically performed by qualified mechanical or industrial maintenance technicians. De-energize and lock out all connected equipment before servicing any coupling components. Ensure both hubs are securely mounted and shaft alignment is within the coupling's tolerance range before seating the sleeve. Consult applicable OSHA lockout/tagout procedures and any relevant machinery safety standards before beginning work.
