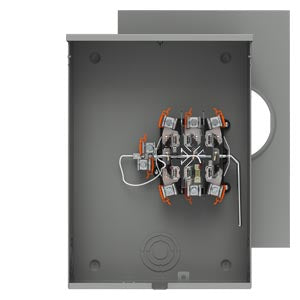

TALON 48807-02NU Meter Socket - 200A, 600VAC, 3 Phase

Product Description

The TALON 48807-02NU is a 1-position meter socket intended for commercial applications. This unit is made from steel and is suitable for 3-phase systems. It supports an amperage of 200A and a voltage of 600VAC. This meter socket features a lever bypass, allowing maintenance without interrupting power. It is categorized as a Type HQSW device.

• Rated for 200A and 600VAC.
• Designed for surface mounting.
• Allows overhead and underground feed.

Product Highlights

The TALON meter socket is designed for ease of installation and operational efficiency in commercial settings.

Product Information

Standard Information

• Phase: 3
• Application: Commercial Applications

Technical Specifications

• Mounting Type: Surface
• Voltage Rating: 600VAC
• Type: 1-Position Type HQSW
• Cover Type: Ringless
• Dimensions: 23 inches H x 16 inches W x 6 inches D
• Amperage Rating: 200A
• Net Weight: 28.065 lb
• Packaging Dimension: 16.00 x 23.00 x 6.00 inches
