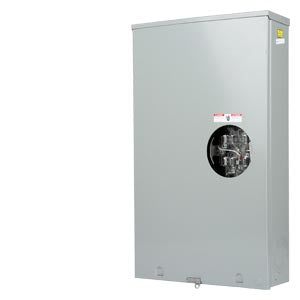

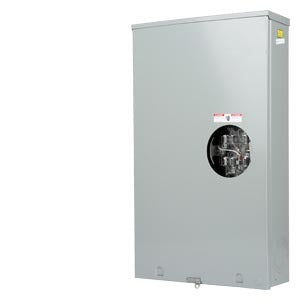

TALON 48707-02 320A Meter Socket

Product Description

The TALON 48707-02 is a 320A meter socket suitable for single-phase or three-phase electrical systems. This product has a 9-cutout, 1-position configuration and is ideal for both overhead and underground installations. It features a lever bypass with clamping action, ensuring reliable performance. The socket is constructed from fourteen gauge galvannealed steel with a polyester powder finish for durability in commercial settings.

• Suitable for overhead and underground service
• NEMA 3R rated for environmental protection
• Includes a track-resistant polycarbonate safety shield

Product Highlights

Designed for safety and durability, this meter socket includes fiber insulating barriers and is equipped with either factory-installed lugs or stud connectors. It has a rated voltage of six hundred volts and supports a frequency rating of fifty to sixty hertz.

Product Information

Standard Information

• Amperage Rating: 320
• Phase: 3

Technical Specifications

• Dimensions: 37 inches H x 21 inches W x 7 inches D
• Weight: 61.134 lb
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Voltage Rating: 600
• Frequency Rating: 50/60
• Hub Size: 4.281
• Commodity Code: 8537109170
