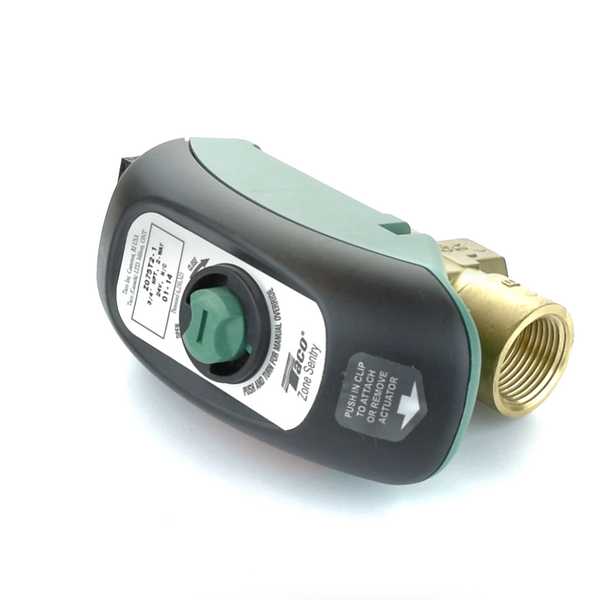

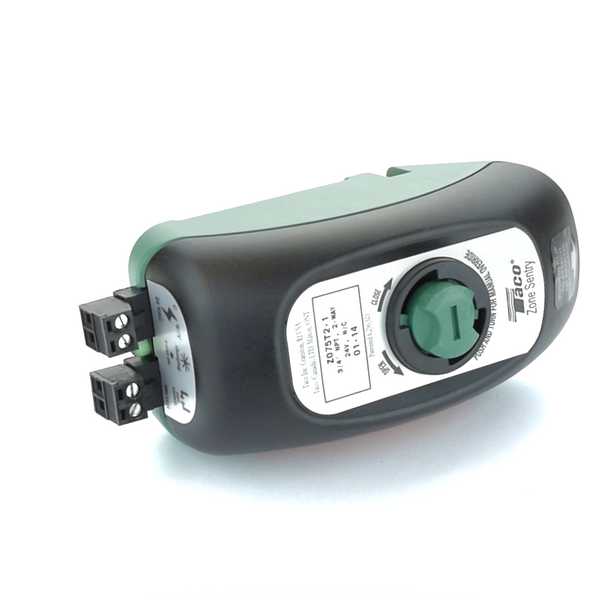

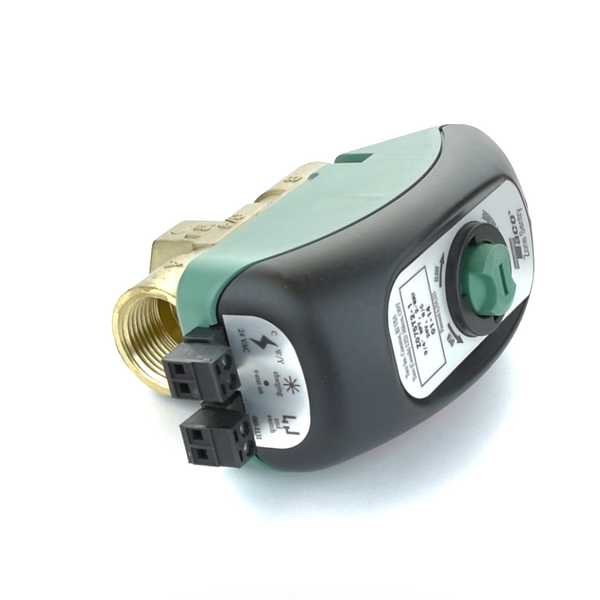

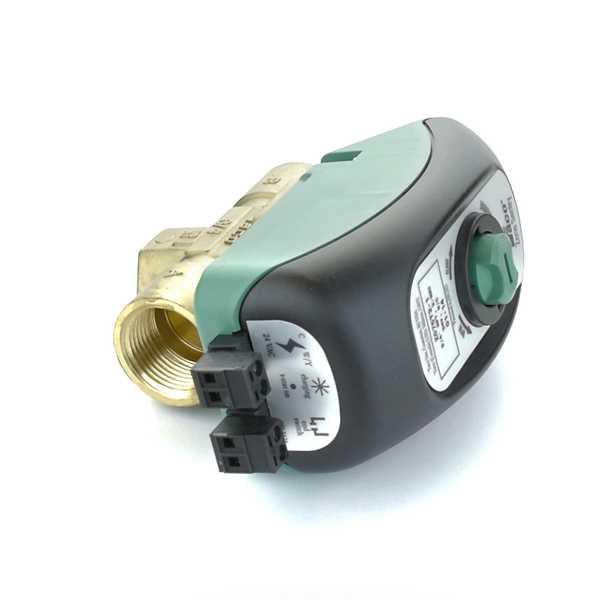

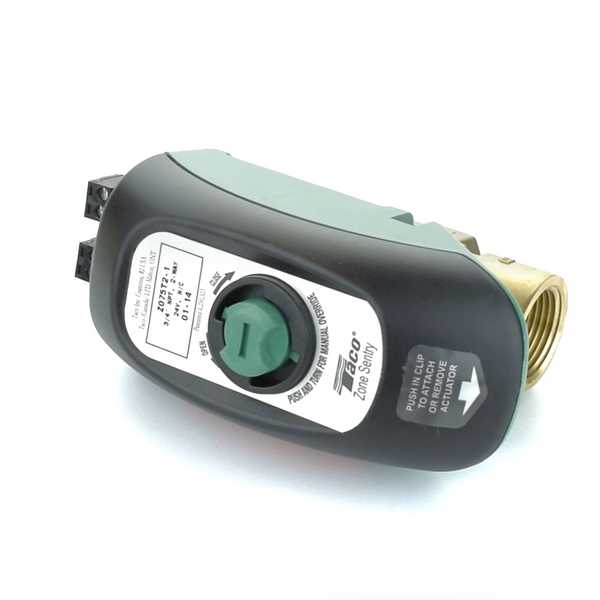

TACO Z075T2 Zone Sentry Zone Valve

Product Description

The TACO Z075T2 Zone Sentry Zone Valve is a motorized valve with a three-fourth threaded connection. It is ideal for heating and cooling applications, allowing for on/off control in open and closed hydronic systems using hot or chilled water.

• Features a three-fourth threaded connection for hassle-free installation.
• Designed for hydronic heating and cooling systems for efficient operation.
• Includes a green LED indicator for easy monitoring of valve functionality.

Product Highlights

This valve operates using microcircuit-based logic for reliability and efficiency.

Product Information

Standard Information

• Brand: TACO
• Color: Black, Copper, Green

Technical Specifications

• Connections: Three-fourth Threaded (2-way)
• Maximum Operating Pressure: 300 psi (2100 kPa)
• Maximum Shutoff Pressure: 125 psi (875 kPa)
• Maximum Ambient Temperature: 135°F
• Fluid Temperature Range: 20-220°F (7-105°C)
• Service: Water or Water/Glycol (up to 50% Glycol), Closed Systems
• Ball Rotation Speed: 90° turn - approx. 5 sec
• Electrical Ratings: 24VAC, 60Hz, 0.48 Amps
• Power Consumption (Charging): 11.4 W, 0.48 Amps
• Power Consumption (Power On): 1.44 W, 0.06 Amps
• Heat Anticipator Setting: 0.5 Amps
• End Switch Ratings: 1 Amps @ 24VAC
• Dimensions: Length: 5.312 inches, Width: 2.375 inches, Height: 5.37 inches
• Weight: 1.35 pounds
• Country of Origin: USA
• UPC: 687752006261
