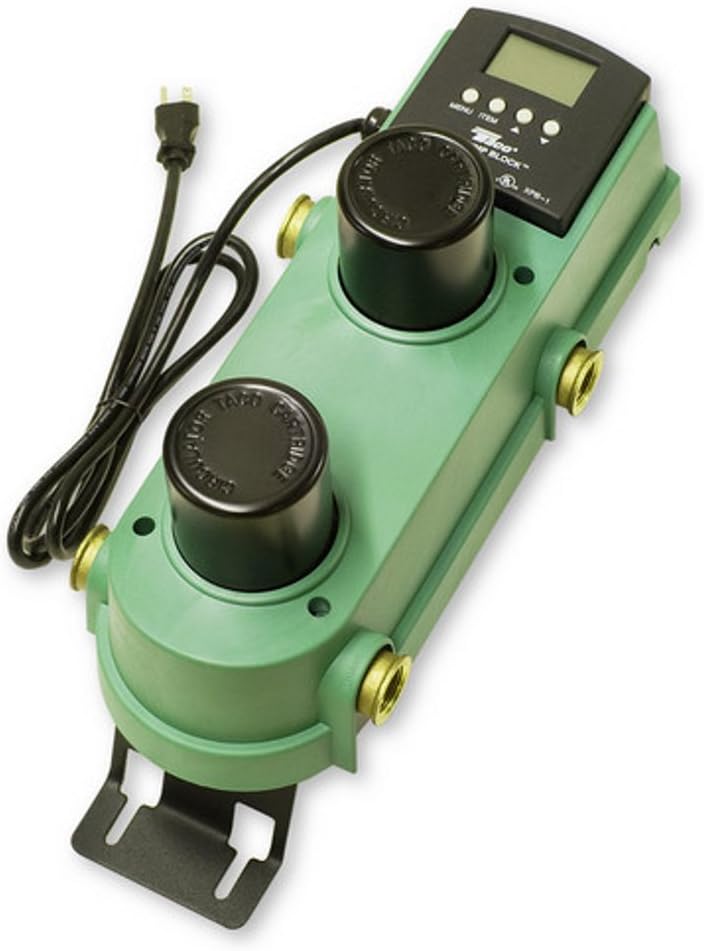

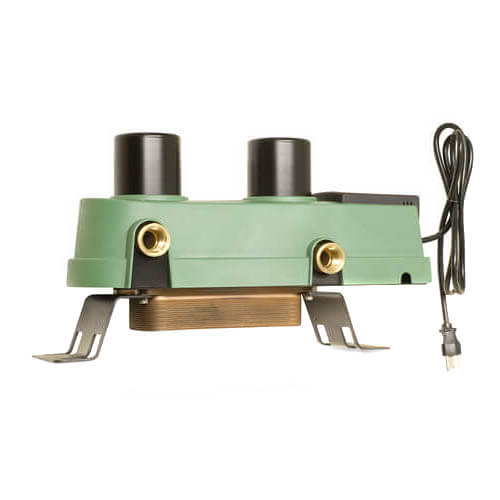

Taco XPB-1 X-Pump Block 1/25 HP Bronze for Closed or Open Systems

Product Description

The Taco XPB-1 X-Pump Block expertly combines a variable speed mixing control, heat source circulator, system circulator, and heat exchanger into one compact unit. Designed for efficiency in heating systems, this device suits both open and closed systems.

• Integrates heat exchanger and dual circulators
• Features plug-in low voltage connections
• Includes outdoor reset and setpoint modes

Product Highlights

Recognized for its substantial space savings and minimal installation time, the Taco XPB-1 X-Pump Block is a premium choice for modern heating installations. It is equipped with a large LCD display and maintenance-free wet-rotor circulators. Its bronze casing enhances durability and performance in various environmental conditions.

Product Information

Standard Information

• Product Type: Plumbing Fixture
• Application: Heating

Technical Specifications

• Power: 1/25 HP
• Flow Range: 0 to 7.5 GPM
• Head Range: 0 to 15.5 feet
• Maximum Pressure: 125 PSI
• Connection Type: 3/4 inch NPT Female
• Temperature Range: 32°F to 185°F
