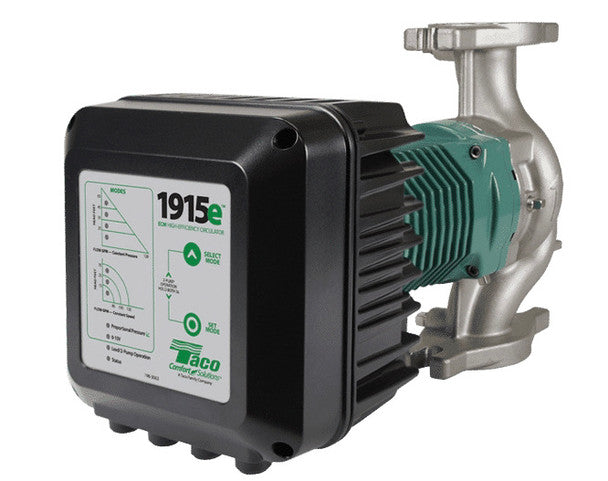

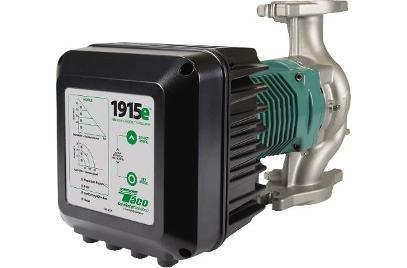

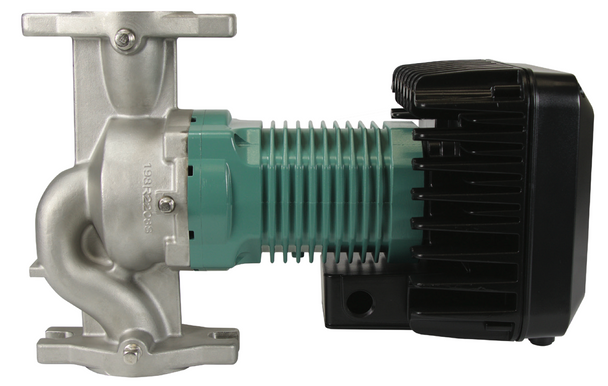

Taco VR65120-CB2-FS2A01 In-Line Circulator Pump

Product Description

The Taco VR65120-CB2-FS2A01 is an in-line circulator pump designed for efficient water flow in potable systems. Its advanced hydraulic design incorporates a high-efficiency volute and a permanent magnet motor using ECM technology.

• Self-sensing technology for automatic adjustment.
• Constructed with stainless steel for durability.
• Versatile control options for enhanced system performance.

Product Highlights

The pump is NSF Commercial Hot Certified and suitable for domestic hot water recirculation and pressure boosting applications.

Product Information

Standard Information

• Brand: Taco
• Model: 1915ecm-SF

Technical Specifications

• MPN: VR65120-CB2-FS2A01
• Body Type: Stainless Steel
• Connection Type: Flanged 2 Bolt
• Flange Size: One and one-half inches
• Max Flow: One hundred twenty USGPM
• Max Shut Off Head: Sixty-five Feet
• Max Operating Pressure: One hundred seventy-five PSI
• Application: Potable water systems
• Water Temperature Range: Thirty-six to two hundred thirty degrees Fahrenheit
• Ambient Temperature Range: Thirty-two to one hundred four degrees Fahrenheit
• Power Consumption: Zero point zero twenty-seven to zero point seventy-five HP
