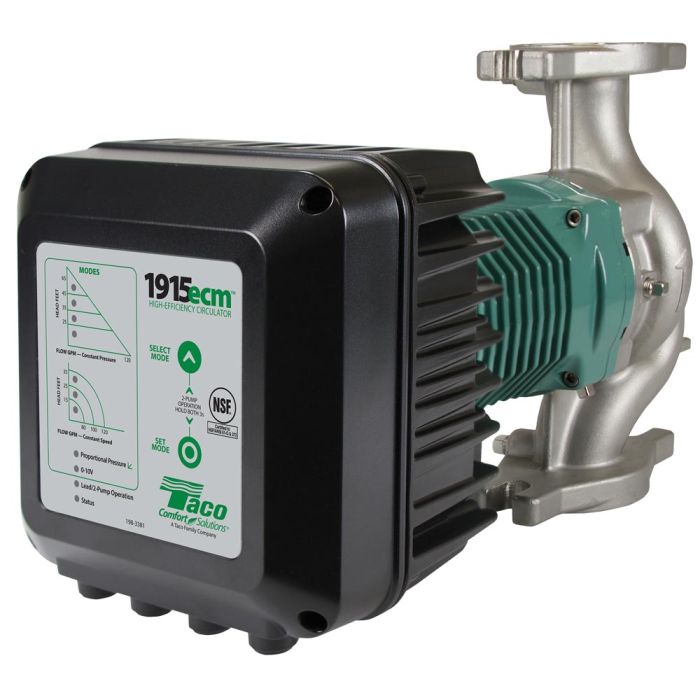

Taco VR65120-CB2-FS2A00 1915ecm-SF 1900e Series ECM Circulator Pump

Product Description

The Taco VR65120-CB2-FS2A00 is a self-sensing, close-coupled, mechanically sealed in-line circulator pump from the 1900e Series. This pump features an advanced hydraulic design that meets industry and efficiency standards. It includes an ECM motor and an integrated frequency drive, ensuring low energy consumption and noise. Control options include constant pressure, speed, proportional pressure, 0-10Vdc, and parallel pump alternation, making it suitable for varied applications.

• High-efficiency volute for optimal performance
• Stainless steel construction for durability and NSF Commercial Hot certification
• Quick start-up and intuitive user interface

Product Highlights

This circulator pump is ideal for domestic hot water applications and enhances system efficiency while providing maximum comfort.

Product Information

Standard Information

• Brand: Taco
• Model: 1915ecm-SF

Technical Specifications

• Pump Type: ECM
• Construction: Stainless Steel
• Connection Size: 1-1/2 inches
• Connection: Flanged
• Motor Voltage: 208-230V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Working Pressure: 175 psi
• Max Temp: 230 degrees F
• Potable Water: Yes
• Weight: 32.00 lbs
