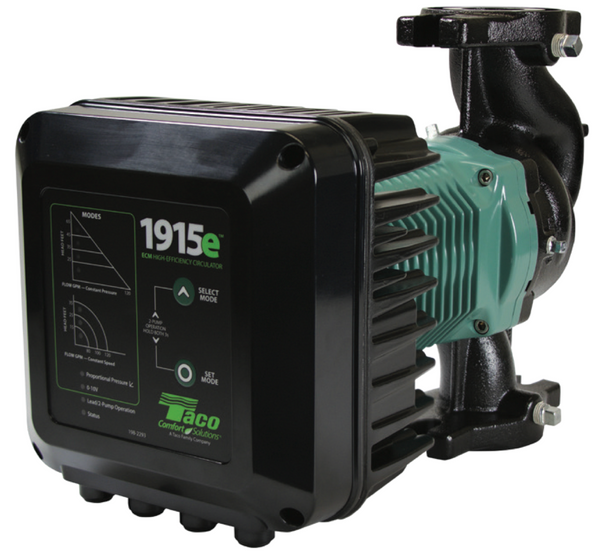

Taco VR50105-HD1-FC2A01 1900e Series ECM High Efficiency Circulator Pump

Product Description

The TACO VR50105-HD1-FC2A01 is a circulator pump from the 1900e Series. It is a self-sensing, close-coupled, mechanically sealed in-line pump. Made with ductile iron, it features an ECM motor and integrated frequency drive.

• Designed for closed-loop, pressurized heating and chilled water HVAC systems
• Flanged 2 Bolt Commercial Oval connection with a one and one-half inch flange size
• Maximum operating pressure of one hundred seventy-five PSI (twelve bar)

Product Highlights

This pump is suitable for indoor use, making it ideal for a variety of HVAC applications.

Product Information

Standard Information

• Brand: Taco
• Series: 1900e

Technical Specifications

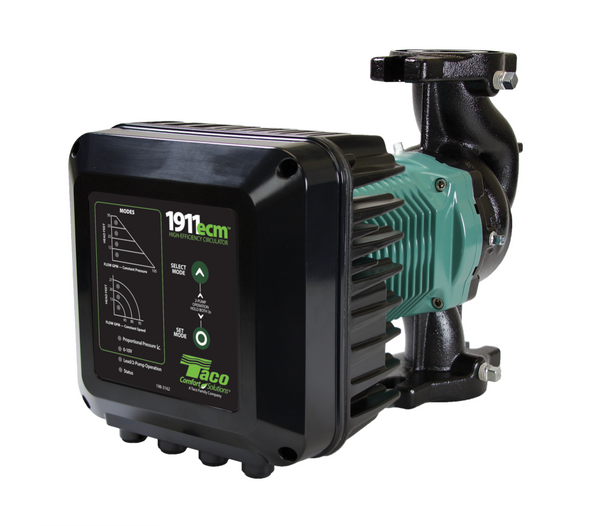

• Model: 1911ecm-F
• Part Number: VR50105-HD1-FC2A00
• Material: Ductile Iron
• Power Consumption: 0.027 - 0.60 HP
• Power Consumption (W): 20 - 425 W
• Rated Current (1Phase, 230V): 0.25A - 4.4A
• Relay Output: 30VDC Max. load up to 2A - 24VAC Max. load up to 3A
• Analog Inputs: Input Voltage: 0-10V, 10mA, 15 VDC Max. Output Voltage: 0-10V, 10mA
• Max Shut Off Head: 50 Feet
• Max Flow: 105 USGPM
• Max Operating Pressure: 175 PSI (12 bar)
• Water Temperature Range: 36 to 230°F (2 to 110°C)
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Ambient Humidity: Less than 95% RH (Indoor Use Only)
• Connection Type: Flanged 2 Bolt Commercial Oval
• Application: Closed loop, pressurized heating and chilled water HVAC systems
• Phase: One
