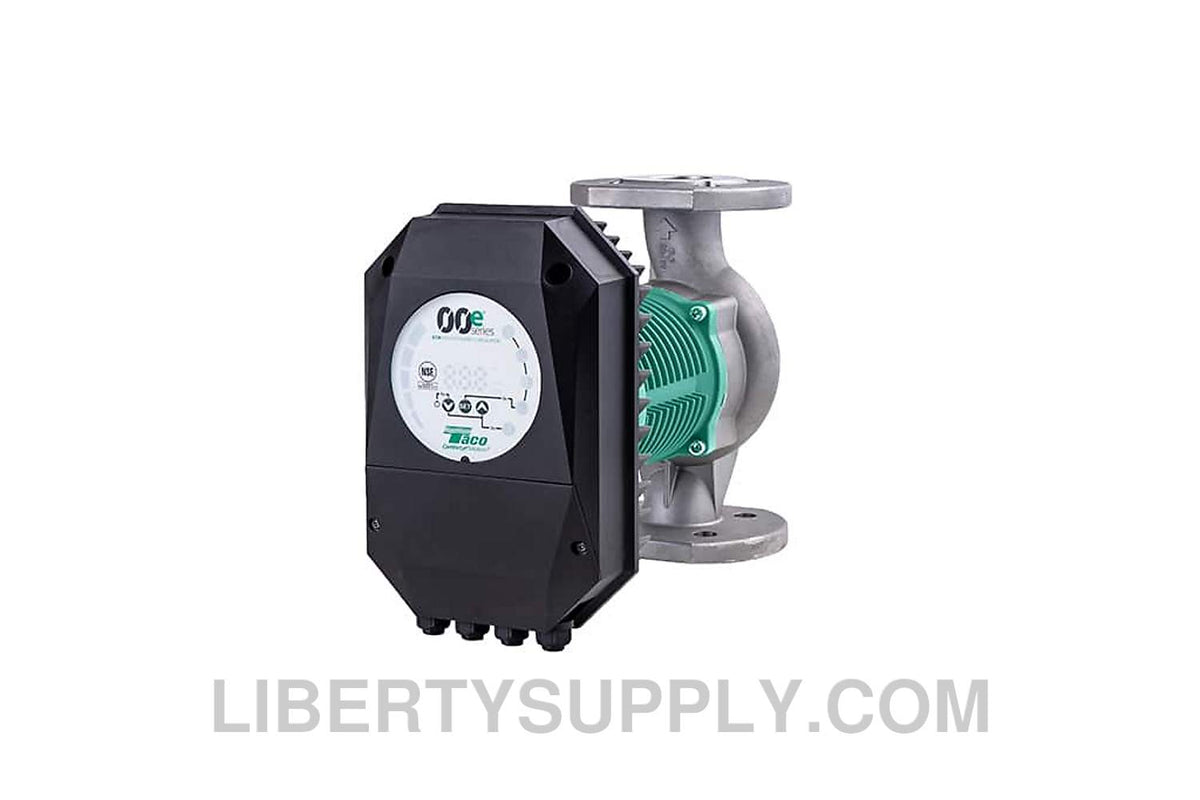

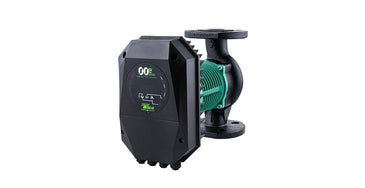

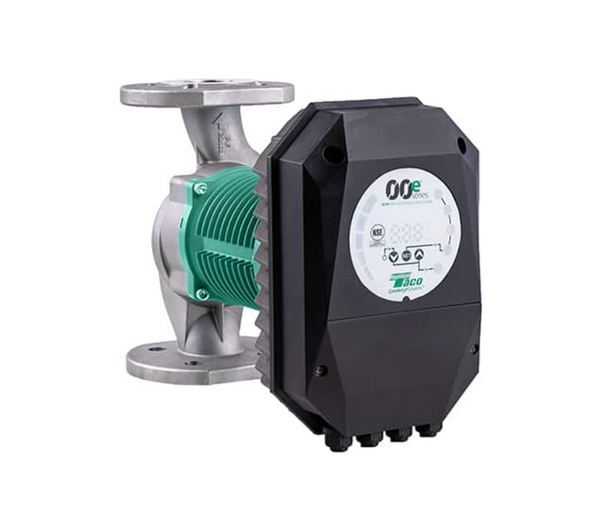

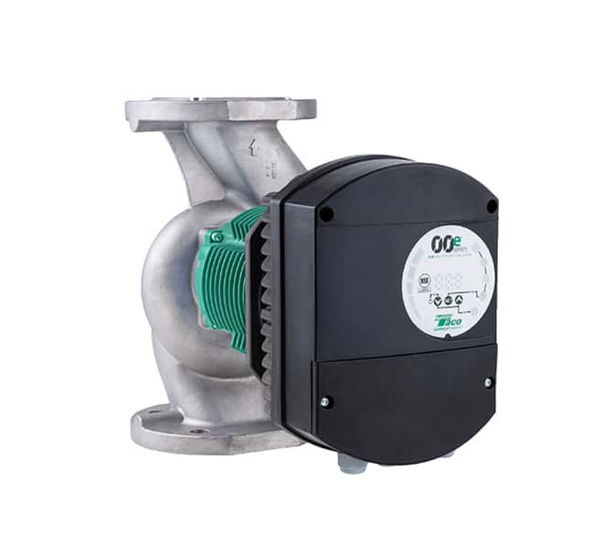

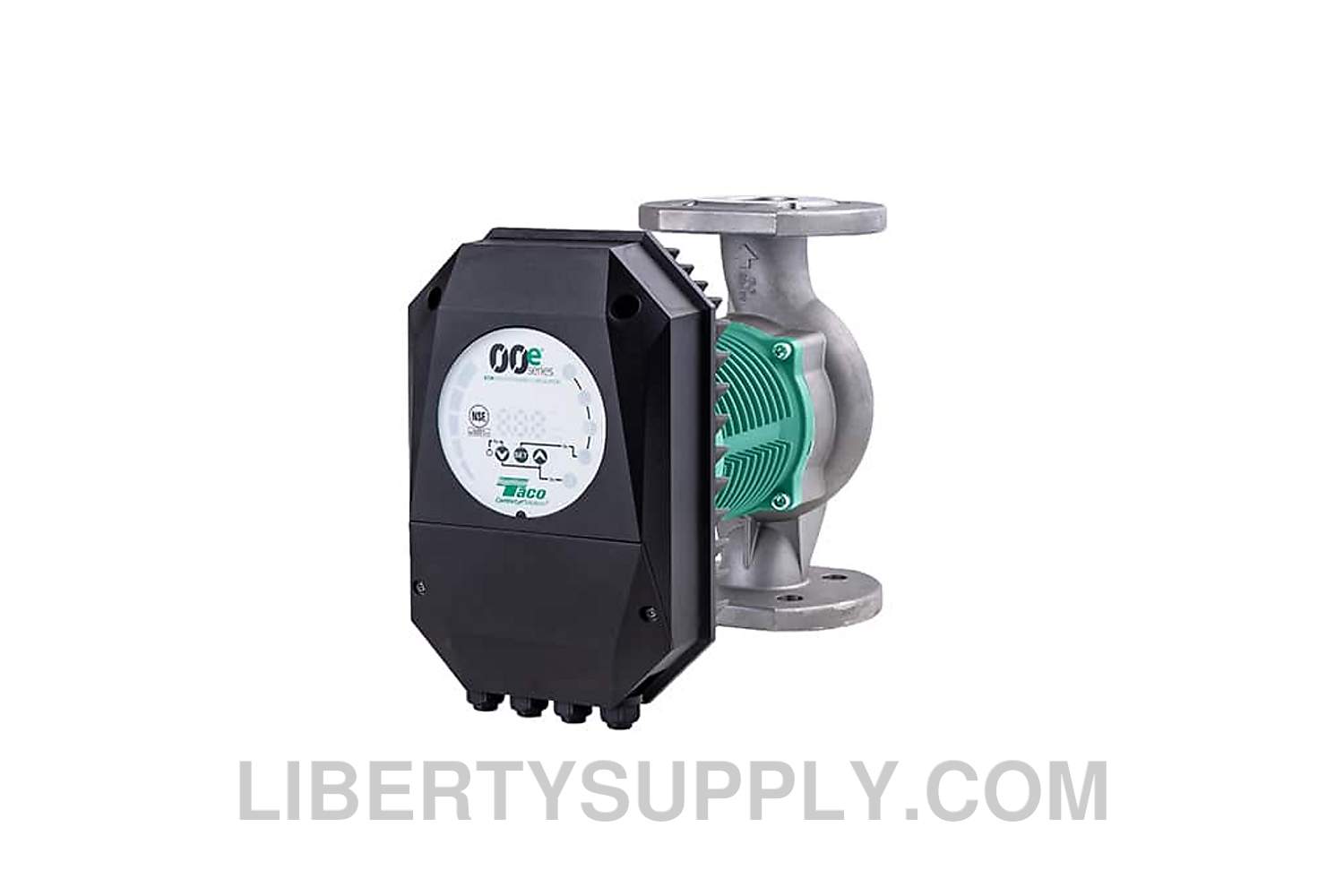

Taco VR30M-SF 00E VR Series ECM High-Efficiency Circulator

Product Description

The TACO VR30M-SF is a variable-speed, wet rotor circulator for commercial chilled and hot water applications. It features an ECM motor to minimize energy usage. This circulator is suitable for fluid temperatures between fourteen to two hundred thirty degrees Fahrenheit. It has a working pressure of one hundred seventy-five psi and includes a stainless steel rotating assembly.

• Compatible with BMS communication protocols like Modbus, BACnet, and PWM.
• Supports multiple modes: constant speed, constant pressure, and proportional pressure.
• Enables parallel pump control with cascading and auto-rotate functionality.

Product Highlights

The TACO VR30M-SF is built for efficiency and automation in fluid systems, significantly enhancing system performance.

Product Information

Standard Information

• Brand: Taco
• Manufacturer Part Number: VR30M-SF

Technical Specifications

• Model: VR30M-SF
• Series: Series 00E VR
• Type: Pump
• Material: Stainless Steel
• Maximum Flow: 313 USGPM
• Maximum Shut Off Head: 39 Feet
• Maximum Pressure: 175 psi
• Water Temperature Range: 14 to 230°F (-10 to 110°C)
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Ambient Humidity: Less than 95% RH
• Power Consumption (HP): 1.9 HP
• Power Consumption (W): 1380 W
• Input Voltage: 200-240
• Connection Size: 3
• Connection Type: Flanged
• 24 Volt Supply Outlet: Max current up to 100mA, Output Voltage +/- 20% of 24 Volts
