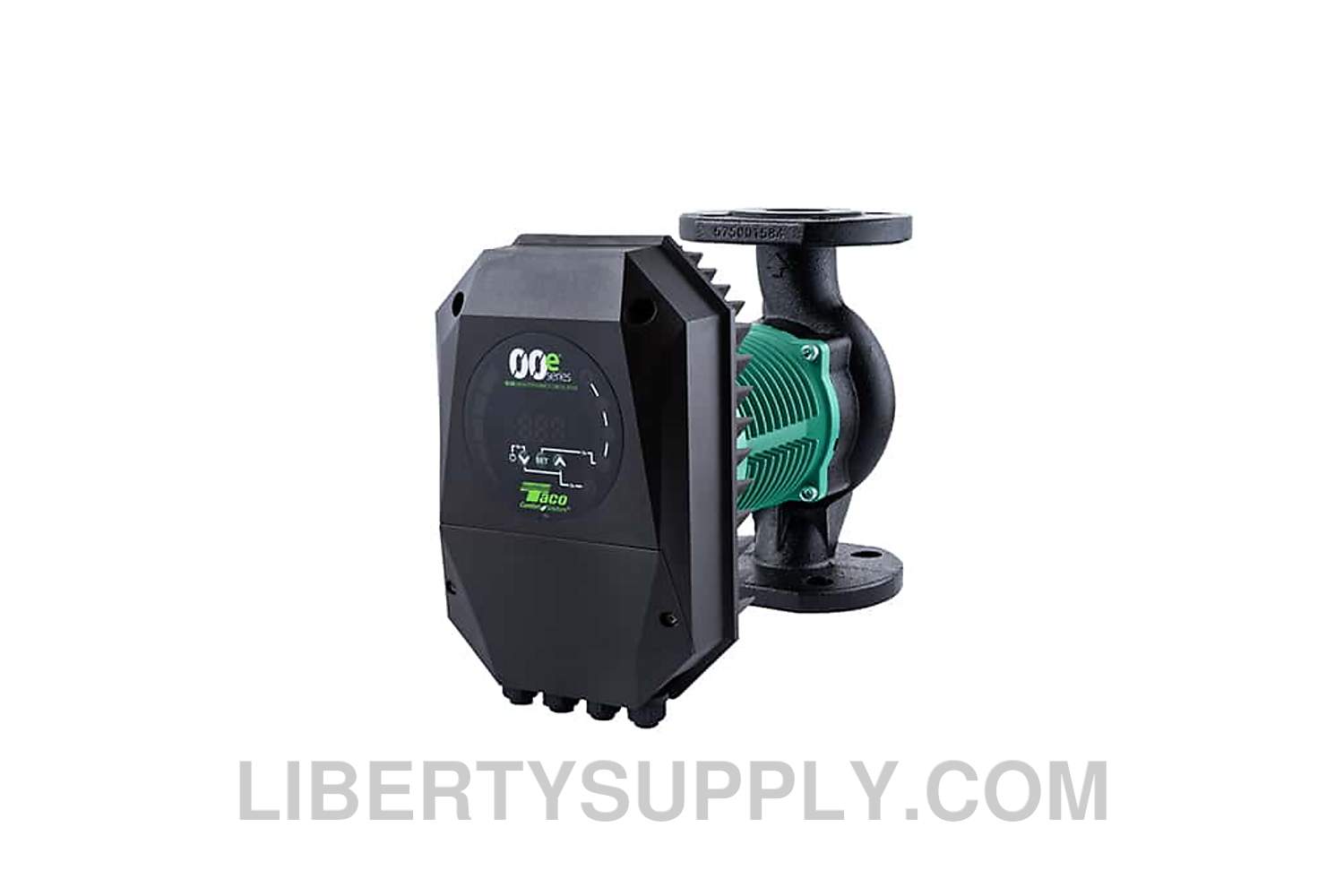

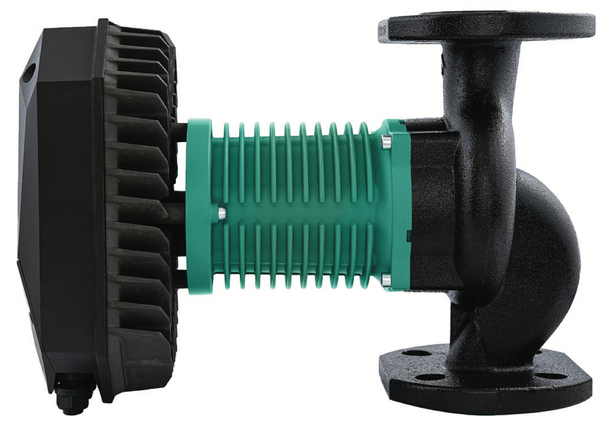

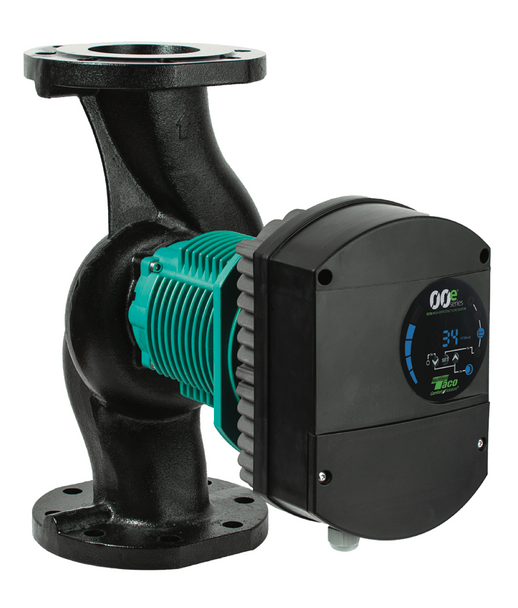

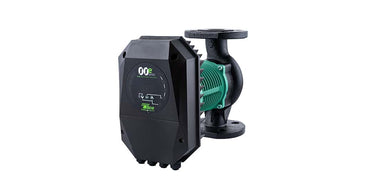

Taco VR20L-F 00e VR Series ECM High-Efficiency Circulator

Product Description

The Taco VR20L-F is a variable-speed wet rotor circulator suitable for both commercial chilled and hot water systems. This circulator features an ECM motor to enhance energy efficiency. Built from cast iron with a stainless steel rotating assembly, it is designed for durability and reliability.

• Works in multiple operating modes including constant speed and proportional pressure.
• Supports BMS communication via Modbus, BACnet, 0-10Vdc, and PWM.
• Compatible with fluids ranging from fourteen to two hundred thirty degrees Fahrenheit.

Product Highlights

Efficient operation is ensured through its ECM technology, making the Taco VR20L-F an excellent choice for various heating and cooling applications.

Product Information

Standard Information

• Brand: Taco
• MPN: VR20L-F

Technical Specifications

• Series: Series 00e VR
• Material: Cast Iron
• Maximum Shut Off Head: 26 Feet
• Maximum Flow: 152 USGPM
• Temperature Range: 14 to 230°F
• Ambient Temperature Range: 32 to 104°F
• Maximum Pressure: 175 psi
• Power Consumption: 0.5 HP / 370 W
• Input Voltage: 110-240
• Connection Size: 2
• Connection Type: Flanged
