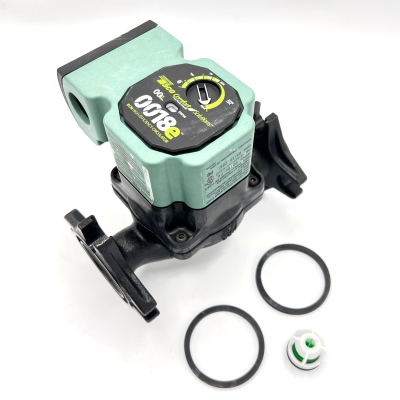

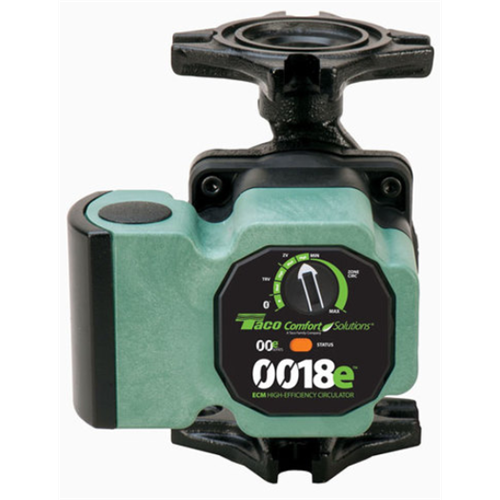

Taco VR1816-HY2-4C2A01 Circulator Pump 44W (4-Bolt Flange)

Product Description

Taco VR1816-HY2-4C2A01 is a cast iron, wet-rotor circulator pump with an ECM motor and Bluetooth connectivity for hydronic heating and closed-loop systems. The variable-speed pump supports fixed-speed, constant pressure, and proportional pressure modes, with SureStart automatic air purge, BIO Barrier filter, and an integrated flow check. Performance: up to 16 GPM, up to 18 ft head, operating voltage 120 V 60 Hz, and operating power range 4 W to 44 W.

• ECM motor with variable-speed control and multiple modes (fixed, constant pressure, proportional); operating power 4 W–44 W.
• Cast iron body with 4-bolt flanged universal connection (3/4 in–1 1/2 in), integrated flow check, and Position 2 configuration.
• Bluetooth connectivity, SureStart automatic air purge/unblock, BIO Barrier filter, 5-color LED diagnostics, double-insulated design with 6 in stranded wire leads.

Product Highlights

Variable-speed ECM circulator pump, cast iron 4-bolt flange, integrated flow check, Bluetooth and SureStart; performance up to 16 GPM and 18 ft head.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: VR1816-HY2-4C2A01
