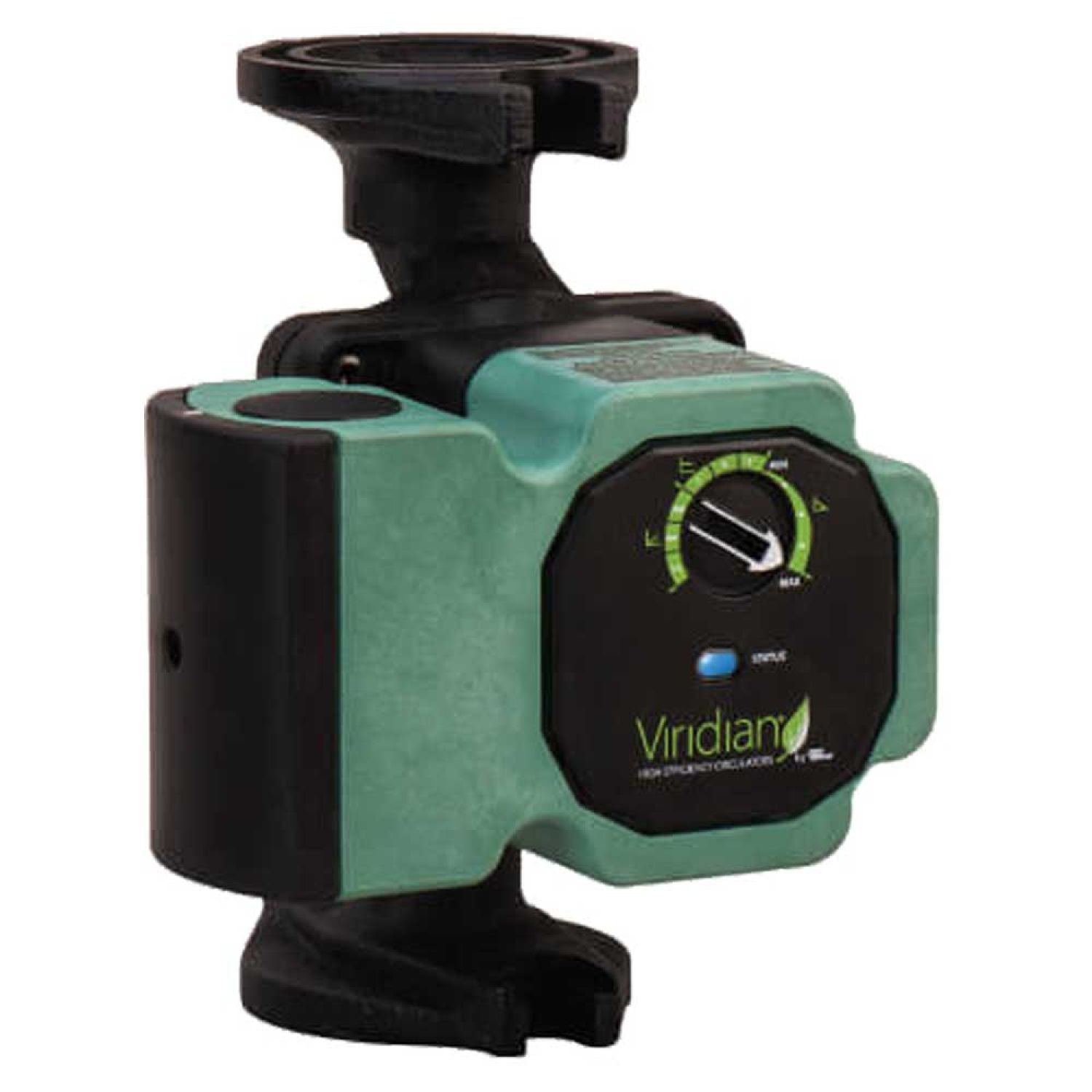

TACO VB1016-HY1-FC2A00 Circulator Pump

Product Description

The TACO VB1016-HY1-FC2A00 is a circulator pump made to keep water flowing in heating, cooling, and potable water systems. It runs on a 115V, single-phase motor and has a durable cast iron casing. This pump is ideal for hydronic systems with circulators or zone valves, as well as for domestic water recirculation. The design includes flanged connections and is intended for use indoors, managing water or a water/glycol mixture.

• Flanged connections for easy installation
• Cast iron construction for durability
• Ideal for hydronic and domestic systems

Product Highlights

This circulator pump effectively maintains water flow in various systems.

Product Information

Standard Information

• Brand: Taco
• MPN: VB1016-HY1-FC2A00

Technical Specifications

• Pump Type: Circulator Pump
• Motor Size: 1/25 HP
• Material: Cast Iron
• Connection Type: Flanged
• Max Flow: 16 GPM
• Flow Rate: 18 GPM
• Max Head Pressure: 10 ft
• Max Pressure: 125 PSI
• Phase: Single Phase
• Input Voltage: 115V
• Amps: 0.54A
• Power Source: Electric
