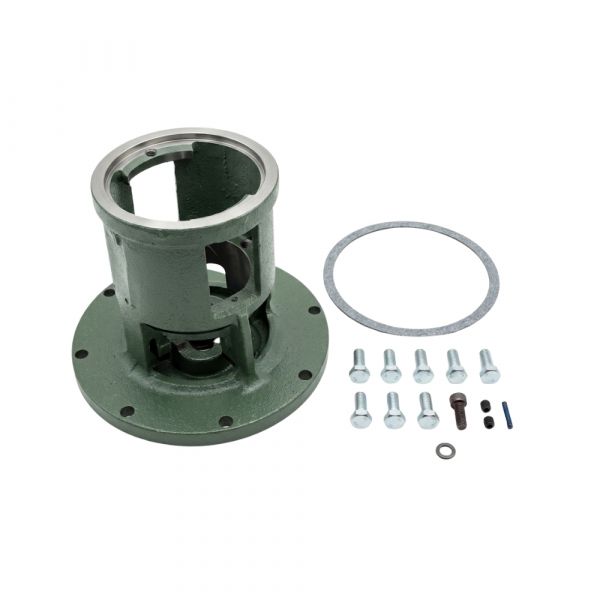

Taco TACO-1600-175RP Cast Iron Bracket Assembly 48 Frame

Product Description

The TACO TACO-1600-175RP is a cast iron bracket assembly designed for 48 frame HVAC applications. It provides a rigid, stable mounting base for motors and equipment that generate sustained vibration and load stress. Cast iron construction delivers long-term durability in mechanical room and equipment pad environments. Pre-drilled holes are included to simplify alignment during installation and reduce field fabrication time. At 14.36 pounds, the assembly is built to handle the structural demands of commercial and residential HVAC mechanical components without flex or shifting over time.

This bracket assembly is suited for use with 48 frame motors and related HVAC equipment in both residential and light commercial installations. The 48 frame designation specifies a standardized shaft height and bolt circle pattern, making it compatible with a range of motors and drives that conform to that frame size. Licensed HVAC technicians and mechanical contractors typically specify this bracket during motor changeouts or equipment upgrades where a secure, code-compliant mounting arrangement is required.

Key Features

• Cast iron construction provides high rigidity and resistance to vibration fatigue
• Designed for 48 frame motor and equipment mounting
• Pre-drilled holes support accurate alignment and faster installation
• 14.36-pound assembly weight indicates heavy-duty structural capacity
• Suitable for residential and light commercial HVAC mechanical installations

Compatibility

Designed as an OEM-style replacement bracket assembly for HVAC motors and equipment conforming to the 48 frame standard.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor. Disconnect and lock out all electrical power to the associated equipment before beginning any mounting or hardware work. Verify that the mounting surface is level and structurally capable of supporting the combined weight of the bracket and the equipment it will carry. Fastener selection and torque should follow the equipment manufacturer's guidelines and applicable local mechanical codes.

Technical Specifications

• Material: Cast Iron
• Frame Size: 48 Frame
• Weight: 14.36 pounds

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-1600-175RP
