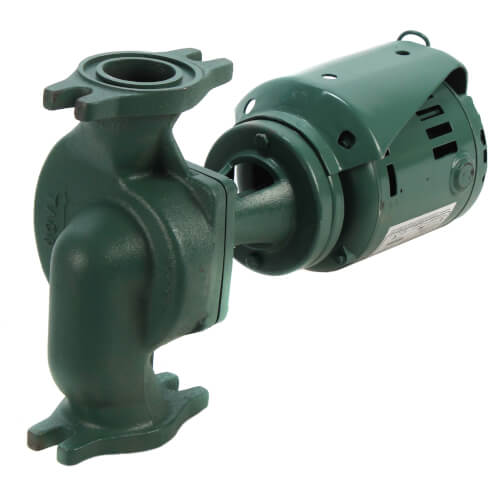

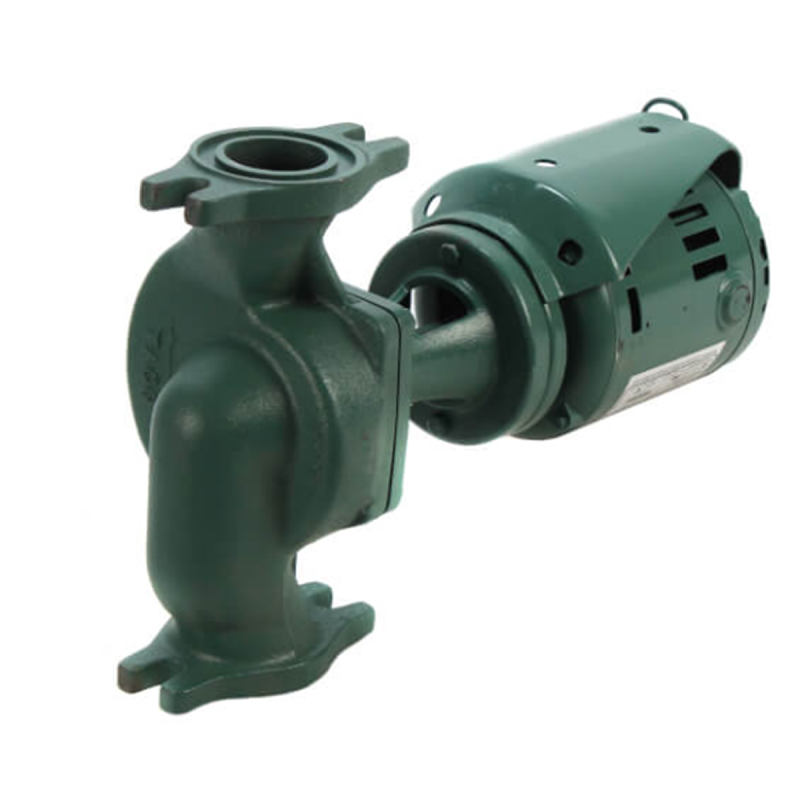

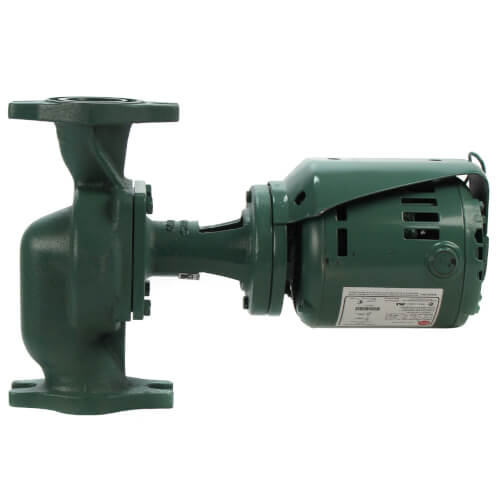

Taco Taco-120-13 120 cast iron three-piece circulator pump 1/6 HP (2 inches flanged x flanged)

Product Description

Taco TACO-120-13 is a 120 series cast iron three-piece in-line circulator pump rated at 1/6 HP for circulating heated or chilled water in residential, commercial hydronic, and solar systems. It uses a resilient-mounted split-phase 115 V, 60 Hz motor at 1725 rpm with sleeve bearings and built-in overload protection. The pump delivers up to 70 GPM flow with a maximum head of 11.5 ft, 125 psi maximum pressure, and 2 in flanged connections.

• Resilient-mounted split-phase motor, 115 V, 60 Hz, 1725 rpm, with built-in overload protector and sleeve bearings
• Cast iron three-piece construction with one-piece non-ferrous impeller, stainless steel shaft, bronze sleeve bearing, and two-piece carbon/ceramic seal
• Performance: flow range 0–70 GPM, max head 11.5 ft, max pressure 125 psi, max temp 240 F, 2 in flanged connections

Product Highlights

1/6 HP cast iron in-line circulator; 2 in flanged connections

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-120-13
• Country of Origin: US

Technical Specifications

• Brand: Taco
• Manufacturer Part Number: TACO-120-13
• Model / SKU: 120-13
• Series: 120
• Product Type: In-line circulator pump
• Construction: Cast iron three-piece
• Horsepower: 1/6 HP
• Input Voltage: 115 V
• Phase: Single-phase
• Frequency: 60 Hz
• Motor Speed: 1725 rpm
• Motor: Resilient-mounted split-phase motor with built-in overload protector
• Impeller: One-piece non-ferrous impeller
• Shaft Material: Stainless steel
• Seal: Two-piece carbon/ceramic seal assembly
• Bearing Type: Sleeve bearing
• Coupling: One-piece spring coupling
• Max Flow: 70 GPM
• Flow Range: 0-70 GPM
• Max Head: 11.5 ft
• Head Range: 0-11.5 ft
• Max Pressure: 125 psi
• Max Temperature: 240 F
• Operating Temperature Range: 85 to 240 F
• Connection Type: Flanged x Flanged
• Connection Size: 2 in
• Enclosure: Open drip-proof
• Mounting: Flange
• Weight: 46 lbs
• Application: Heated or chilled water; residential, commercial hydronic, and solar systems; primary-secondary and parallel pumping; zoning
• Certifications: NSF Approved
• Country of Origin: US
