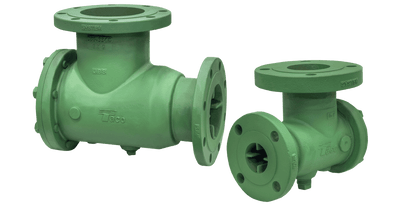

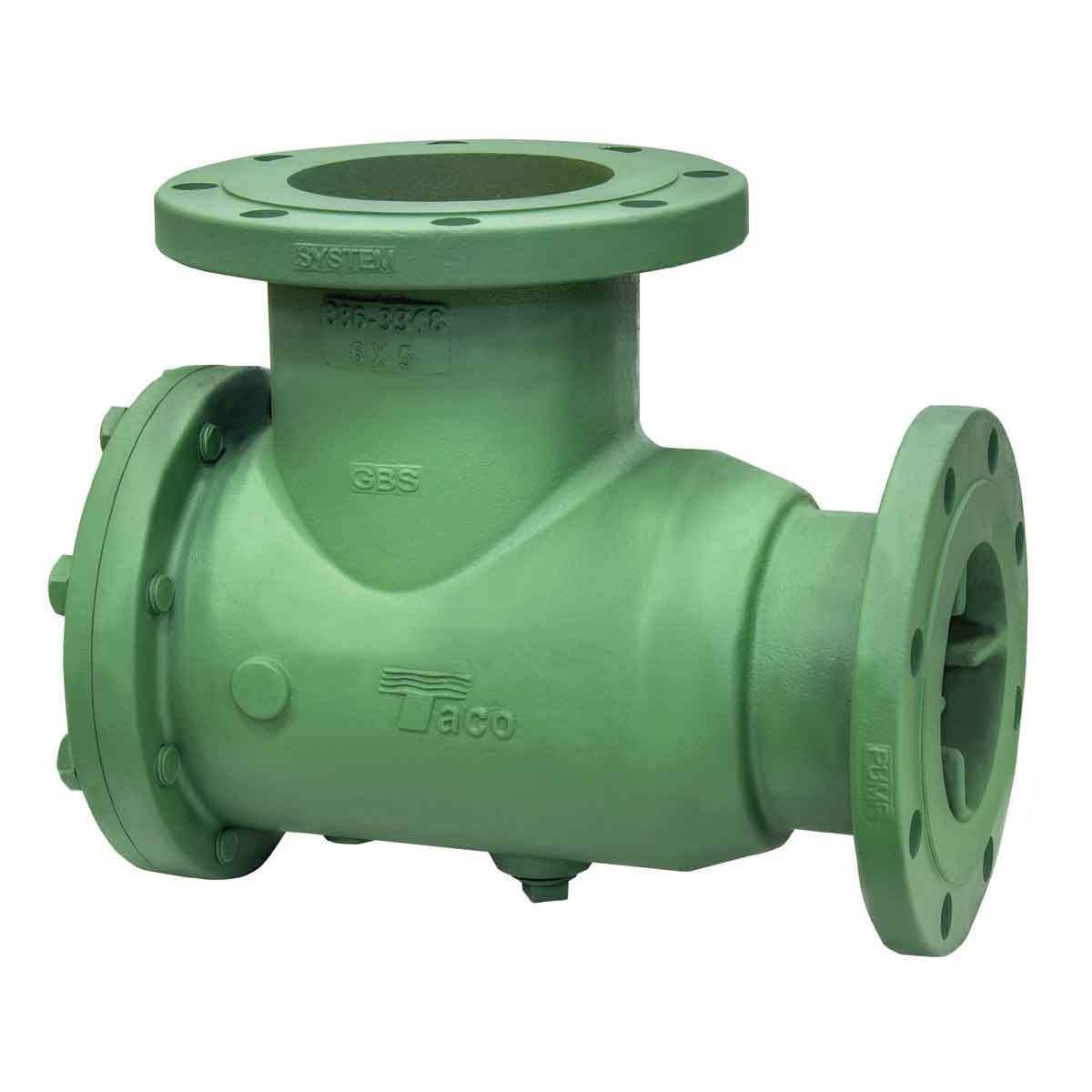

TACO SD040030-5 Suction Diffuser Flanged 4 Inch x 3 Inch Connection

Product Description

The Taco SD040030-5 Suction Diffuser is crafted for optimizing flow dynamics in HVAC systems, featuring robust ductile iron construction. Ideal for both commercial and industrial settings, this model ensures streamlined installation and effective performance.

• Flanged connections measuring 4 inches by 3 inches for straightforward integration.
• Incorporates integral straightening vanes to enhance flow efficiency.
• Equipped with a fine mesh start-up strainer, replaceable for upkeep.

Product Highlights

This suction diffuser stands out for its ability to maintain a maximum operating pressure of 175 psi and withstand temperatures up to 250 degrees Fahrenheit, ensuring reliability in a range of environmental conditions.

Product Information

Technical Specifications

• Brand: Taco
• MPN: SD040030-5
• Model: RSP
• Material: Ductile Iron
• Maximum Operating Pressure: 175 psi
• Maximum Operating Temperature: 250 degrees Fahrenheit
