Taco SD030020-5 RSP 3 x 2 in. Suction Diffuser, Ductile Iron Body, Flanged Connections

Product Description

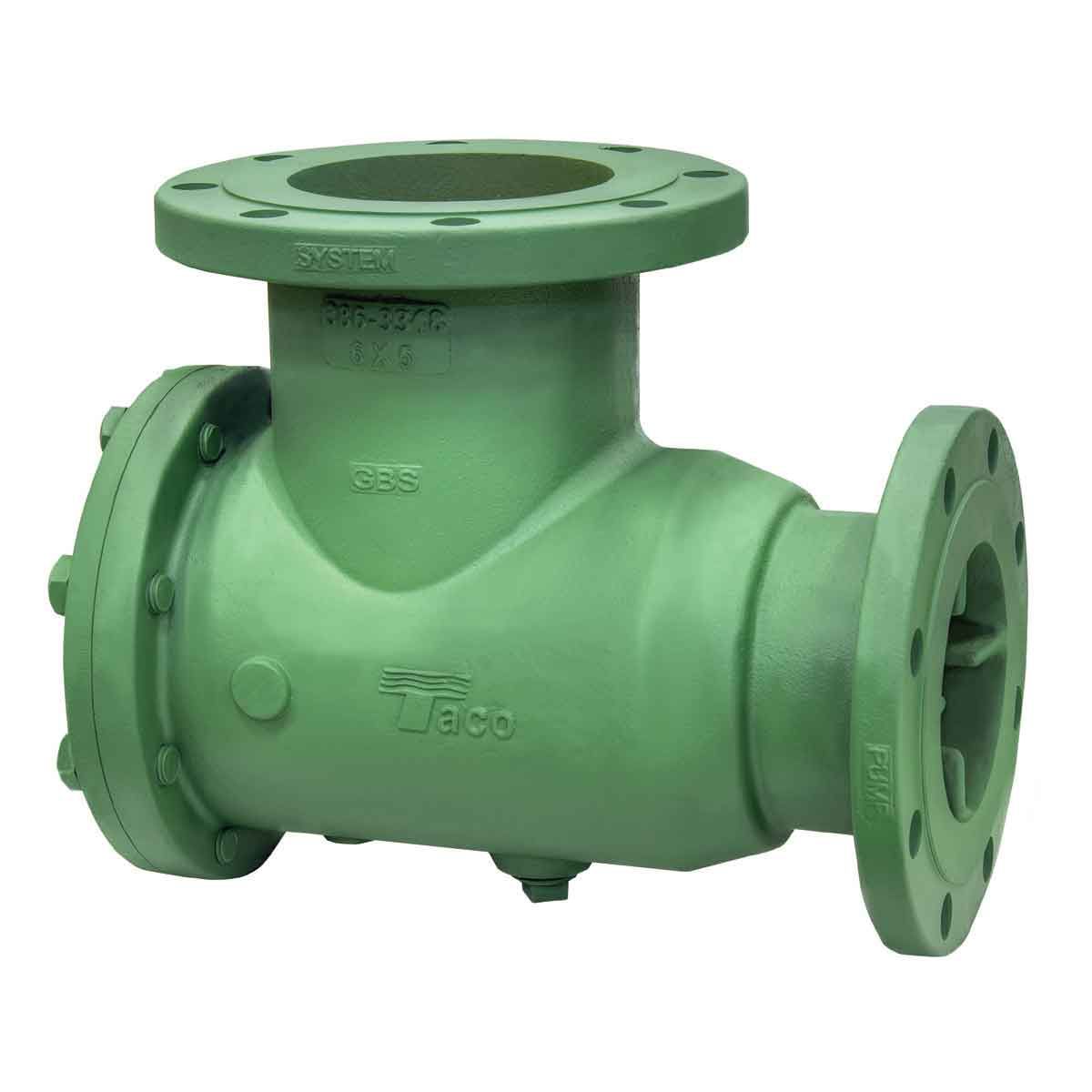

The Taco SD030020-5 RSP Suction Diffuser is a ductile iron piping component designed for installation at the suction inlet of a pump in hydronic heating, cooling, and water circulation systems. Featuring a 3 in. system-side connection and a 2 in. pump-side connection, this suction diffuser combines flow straightening and straining functions in a compact fitting to simplify pump piping installations and improve flow conditions at the pump inlet.

The diffuser features an oversized body cylinder, integral cast straightening vanes, and a disposable fine mesh start-up strainer. Its design helps provide uniform flow to the pump suction inlet, reduce pressure drop, and minimize the need for an extended straight pipe run. The rear strainer pullout design allows access to internal components for inspection and maintenance.

Constructed with a durable ductile iron body and flanged connections, the Taco SD030020-5 is suitable for applications such as hot water heating, closed cooling circuits, air conditioning, hydronic heating and cooling, and solar or geothermal systems. It supports a maximum operating pressure of 175 PSI and a maximum operating temperature of 250 degrees F.

Product Highlights

• Suction Diffuser Design: Combines flow straightening and straining functions in a single pump piping component.

• Ductile Iron Body: Provides a durable body construction for hydronic and water circulation applications.

• 3 x 2 in. Connections: Features a 3 in. system-side flange and a 2 in. pump-side flange.

• Flanged Connections: Designed for flanged piping and direct connection to the pump suction flange.

• Integral Cast Straightening Vanes: Help deliver uniform flow to the pump suction inlet.

• Oversized Body Cylinder: Designed to help minimize pressure drop through the diffuser.

• Fine Mesh Start-Up Strainer: Helps capture debris during initial system operation.

• Rear Strainer Pullout Design: Provides access to the strainer and internal components for maintenance.

• Maximum Operating Pressure: Rated for up to 175 PSI.

• Maximum Operating Temperature: Rated for up to 250 degrees F.

Applications

• Hot water heating systems

• Closed cooling circuits

• Air conditioning systems

• Hydronic heating and cooling systems

• Solar and geothermal systems

• Water circulation and pump suction piping

Product Information

Standard Information

• Brand: Taco

• Manufacturer: Taco Comfort Solutions

• MPN: SD030020-5

• Model: RSP

• Product Type: Suction Diffuser

• Series: Rear Strainer Pullout (RSP)

• Body Material: Ductile Iron

• Application: Pump Suction Piping

Technical Specifications

System-Side Connection Size:

3 in.

Pump-Side Connection Size:

2 in.

Connection Type:

Flanged

Pressure Class:

ANSI Class 125

Maximum Operating Pressure:

175 PSI

Maximum Operating Temperature:

250 degrees F

Flow Straightening Vanes:

Integral cast construction

Strainer Type:

Disposable fine mesh start-up strainer

Maintenance Design:

Rear strainer pullout
