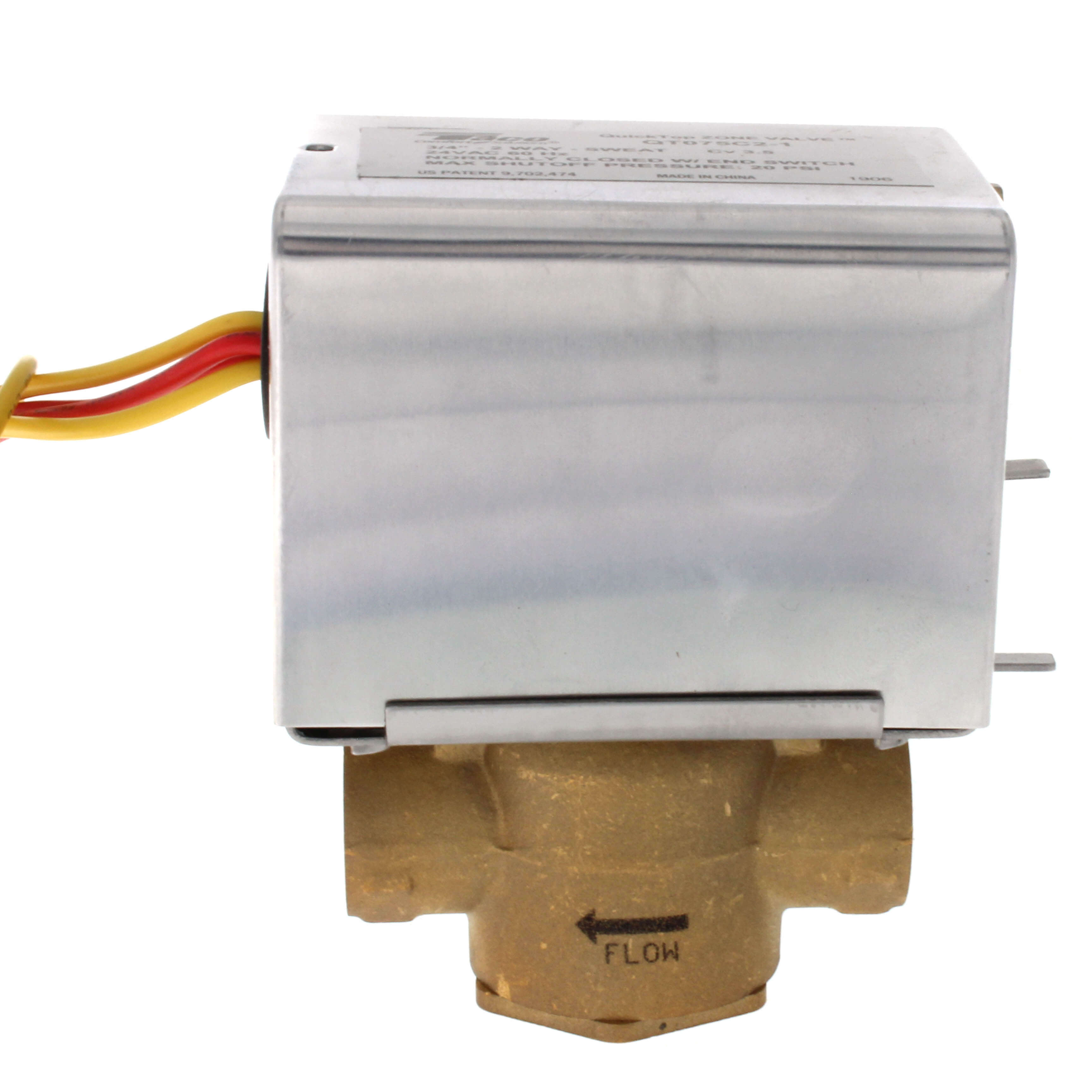

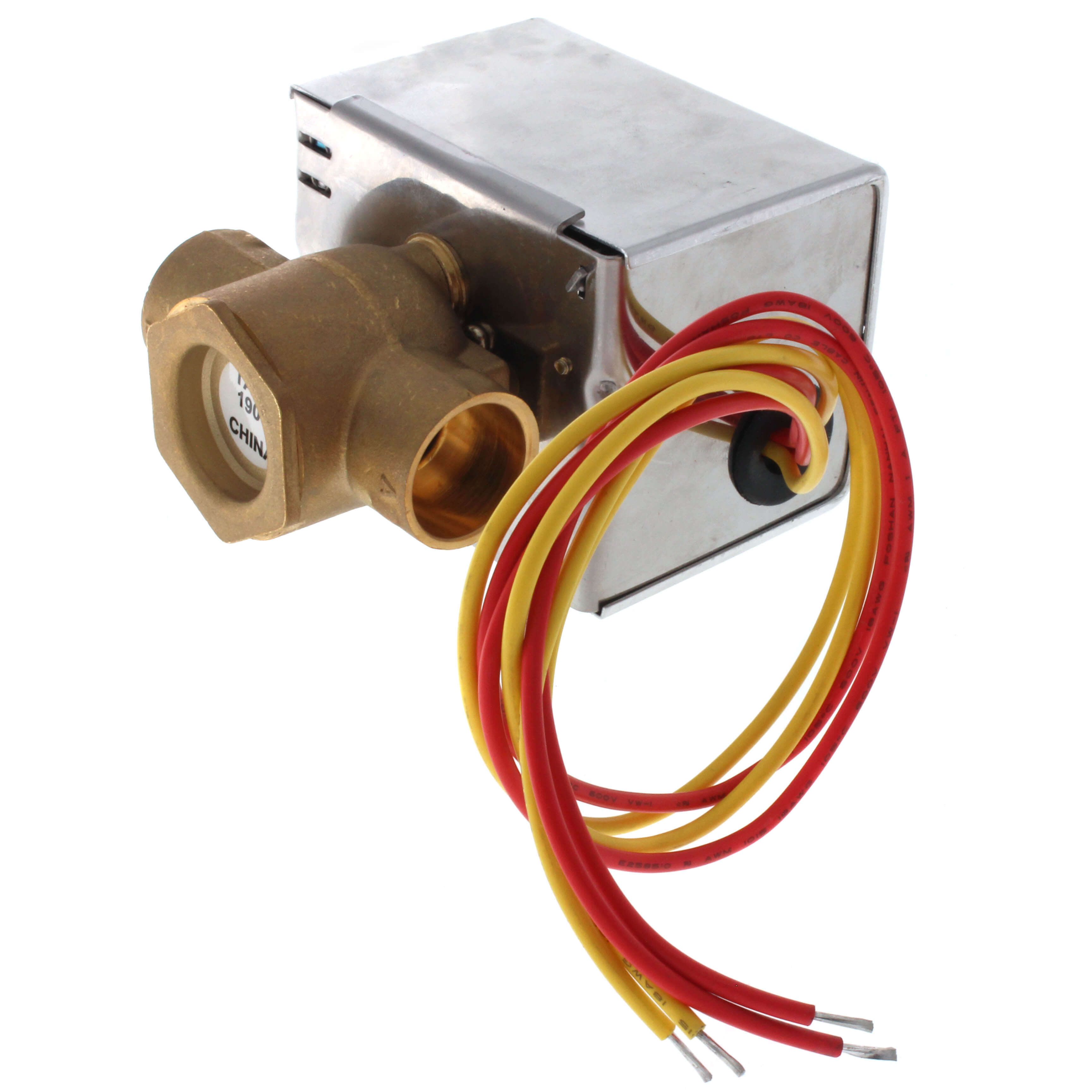

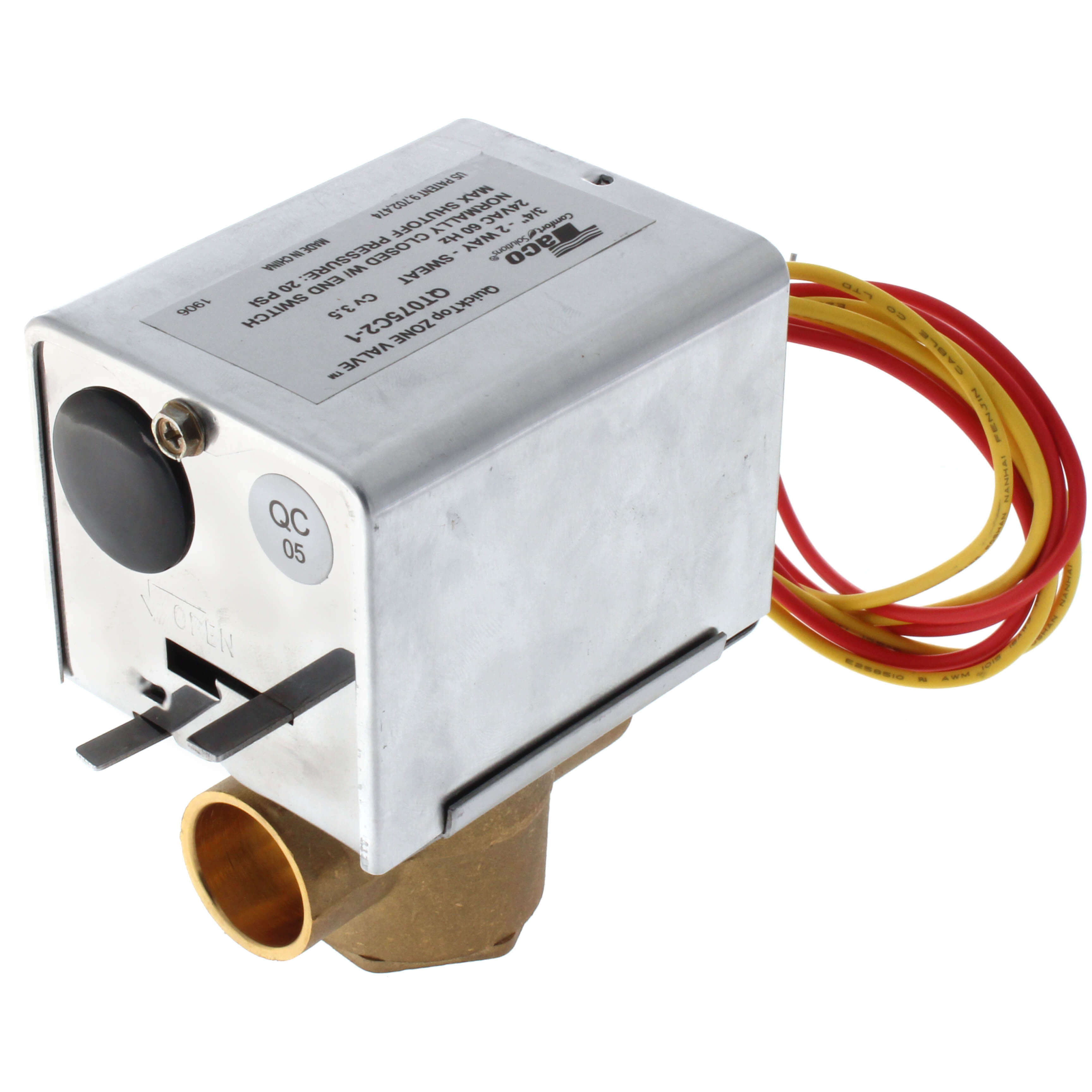

Taco QT075C2-1 3/4 QuickTop Zone Valve Sweat

Product Description

Taco QuickTop Zone Valve QT075C2-1 provides a way to manage individual zones or isolate equipment in closed loop hydronic systems. It allows flow control through one pump with multiple zone valves, offering comfort and energy savings by controlling room temperature effectively.

• Available with sweat connections in half inch, three quarter inch, or one inch.
• Used in various heating and cooling applications with baseboard, fan coils, and more.
• Offers on-off normally closed control for effective system management.

Product Highlights

This zone valve is ideal for hydronic systems, ensuring reliable operation across diverse heating setups.

Product Information

Standard Information

• Application: Closed hydronic systems
• Fluid Type: Water or Water/Glycol up to 50%

Technical Specifications

• Static Pressure Rating: 300 psi
• Close-off Pressure: 15 - 20 psi
• Ambient Temperature: 32°F - 125°F
• Fluid Temperature Range: 32°F - 200°F
• Voltage: 24v
• Wattage: 5W
• Amperage: 7.2
• Flow Capacity (Cv): 3.5
• End Switch: Yes
• Body Pattern: 2-Way
• Position: Normally Closed
• Connection Type: Sweat
