Taco MPV050-4 MPV Plus Two - 5 FLG Multi-Purpose Valve

Product Description

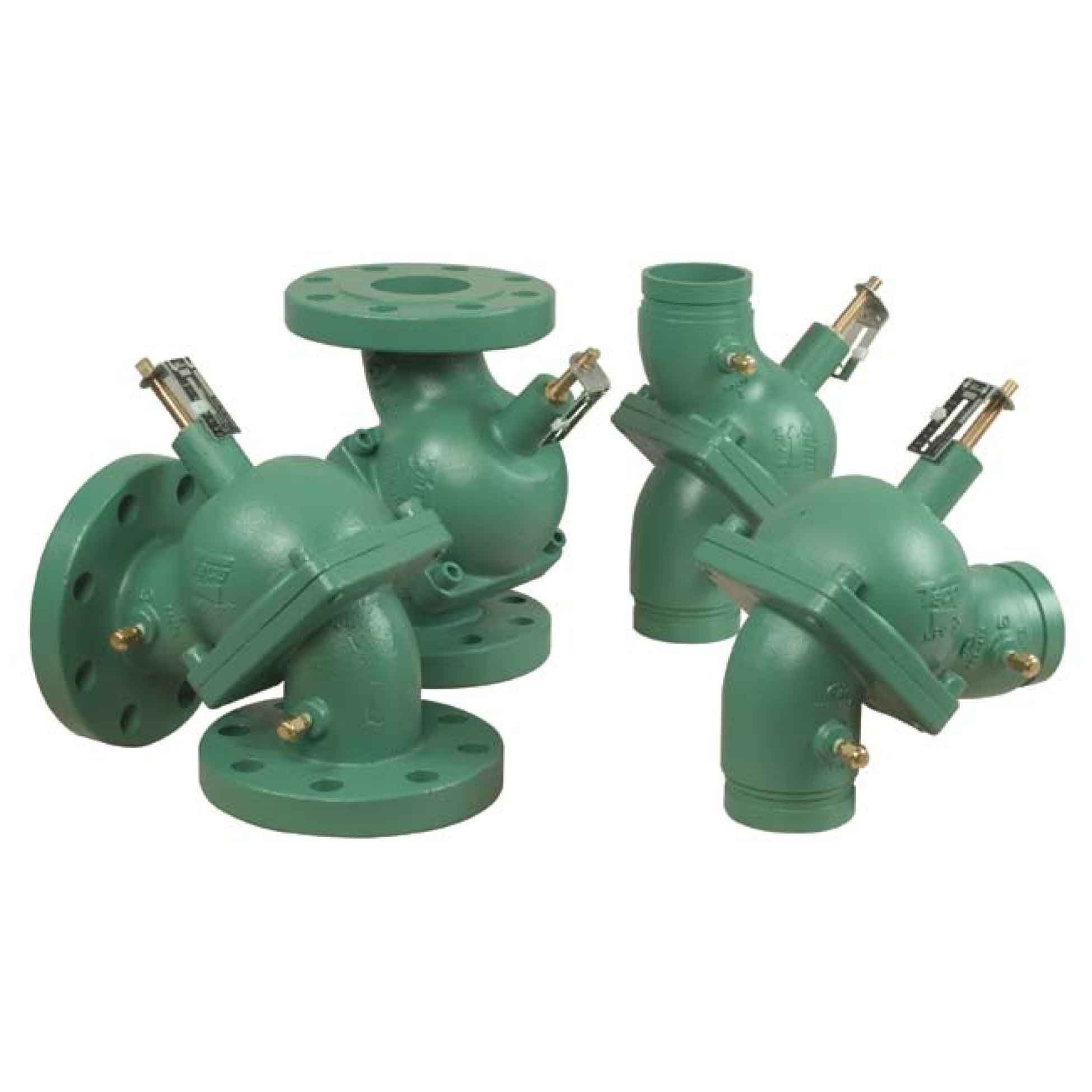

The Taco MPV050-4 is a multi-purpose valve designed for use in hydronic heating and cooling systems. It features a five-inch flanged connection and is rated for service up to one hundred twenty-five psi. The MPV050-4 integrates multiple functionalities into one body, including shut-off capability, non-slam check, balance control, and flow metering.

• Combines several valve functions in one unit.
• Flexible piping configuration for horizontal and vertical setups.
• Constructed with durable ductile iron for extended use.

Product Highlights

This valve optimizes performance and reliability in pump discharge applications.

Product Information

Standard Information

• Brand: Taco
• MPN: MPV050-4

Technical Specifications

• Model: MPV
• Valve Size: 5
• Valve Connection: Flanged
• Piping Configuration: Horizontal, Vertical
• Body Material: Ductile Iron
• Valve Application: Hot Water, Water
• Max Pressure: 125 psi WSP
• Max Temperature: 250°F
• Weight: 105.00
